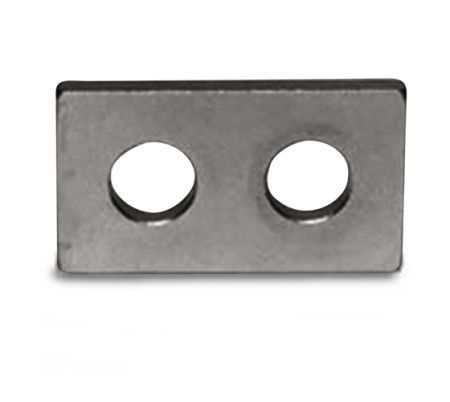

RICE LAKE Load Cell Spacers

Use with most popular single-ended beams
Provides flat mounting surface required for optimum load cell performance
Zinc-plated mild steel or stainless steel

Information

Optimize your load cell performance with a load cell spacer. Load cells require a flat mounting surface to perform correctly. Choose from stainless steel or mild steel construction for mounting your load cells.

Load Cell Spacers Dimensions:

Part #	C		H		H1		L		L1		L2		W
Mild Steel
17754	0.53 in	13.4 mm	1.25 in	31.8 mm	0.62 in	15.7 mm	2.25 in	57.2 mm	0.62 in	15.7 mm	1.00 in	25.4 mm	0.25 in	6.4 mm
17755	0.78 in	19.8 mm	1.50 in	38.1 mm	0.75 in	19.1 mm	3.00 in	76.2 mm	0.75 in	19.1 mm	1.50 in	38.1 mm	0.25 in	6.4 mm
17756	1.03 in	26.2 mm	2.00 in	50.8 mm	1.00 in	25.4 mm	4.00 in	101.6 mm	1.00 in	25.4 mm	2.00 in	50.8 mm	0.25 in	6.4 mm
18260	0.53 in	13.4 mm	1.25 in	31.8 mm	0.62 in	15.7 mm	2.25 in	57.2 mm	0.62 in	15.7 mm	1.00 in	25.4 mm	0.37 in	9.4 mm
Stainless Steel
17757	0.78 in	19.8 mm	1.50 in	38.1 mm	0.75 in	19.1 mm	3.00 in	76.2 mm	0.75 in	19.1 mm	1.50 in	38.1 mm	0.25 in	6.4 mm
18383	0.53 in	13.4 mm	1.25 in	31.8 mm	0.62 in	15.7 mm	2.25 in	57.2 mm	0.62 in	15.7 mm	1.00 in	25.4 mm	0.37 in	9.4 mm
18411	0.53 in	13.4 mm	1.25 in	31.8 mm	0.62 in	15.7 mm	2.25 in	57.2 mm	0.62 in	15.7 mm	1.00 in	25.4 mm	0.25 in	6.4 mm

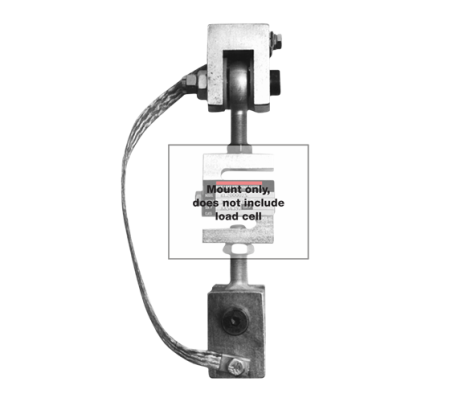

RICE LAKE ITCM Hardware Kits

Provides greater safety than traditional/suspension configurations
Complete package for ease of installation
Built-in electrical isolation without having to use isolators (not available on 20,000 lb/9,071.9 kg version)
Provides correct load cell loading even in difficult installations
Dramatically reduces overall length
Capacities from 100 lb (45.4 kg) to 20,000 lb (9,071.9 kg)
Clevis mounts with nylon insulating washers
PTFE-lined rod end ball joints (not available on 20,000 lb/9,071.9 kg version)
Completely isolates load cell from stray currents
Grounding strap for electrical continuity
Zinc plated clevis

Information

The Isolated Tension Cell Mount (ITCM) is a mounting assembly designed for tension mounting s-beam load cells in suspended hopper assemblies and mechanical scale conversions.

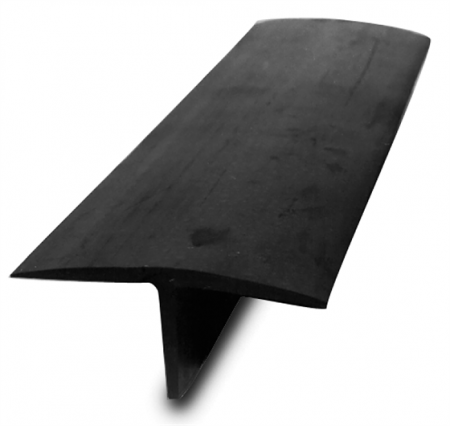

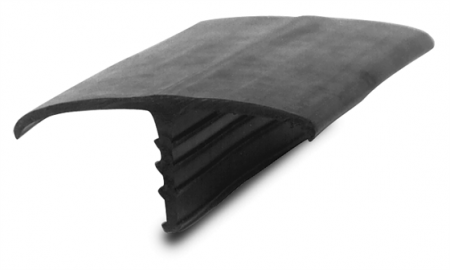

RICE LAKE T-Grip Molding

Designed for use in truck scale applications to prevent spillover into the pit
Impact, tear and weather-resistant EPDM rubber
Barbed web to hold molding in place
Web thickness 0.22 in (5.6 mm)
Available by the foot or 10.0 ft (3.1 m), 11.0 ft (3.4 m), 70.0 ft (21.34 m), 80.0 ft (24.4 m) and 100.0 ft (30.5 m) lengths
Maximum continuous length is 450 ft (137 m)

Information

Seal the cracks around your pit-type truck scale to prevent gravel and debris from entering the pit. T-Grip, as its name implies, is better suited for gripping the contact surface with its special barbed ridges. Available in various lengths.

T-Grip Molding Dimensions:

Part #	H		W		W1		Length
Part #Note: Maximum continuous length is 450 ft. Call for price and availability.
Part #18799	H2.56 in	65.0 mm	W5.75 in	146.1 mm	W10.22 in	5.6 mm	LengthSold by the foot
Part #18800	H2.56 in	65.0 mm	W5.75 in	146.1 mm	W10.22 in	5.6 mm	Length10 ft 3.05 m
Part #18801	H2.56 in	65.0 mm	W5.75 in	146.1 mm	W10.22 in	5.6 mm	Length11 ft 3.35 m
Part #18802	H2.56 in	65.0 mm	W5.75 in	146.1 mm	W10.22 in	5.6 mm	Length70 ft 21.34 m
Part #33219	H2.56 in	65.0 mm	W5.75 in	146.1 mm	W10.22 in	5.6 mm	Length80 ft 24.4 m
Part #33222	H2.56 in	65.0 mm	W5.75 in	146.1 mm	W10.22 in	5.6 mm	Length100 ft 30.5 m

RICE LAKE T-Strip Molding

Designed for use in truck scale applications to prevent spill-over into the pit
Impact, tear and weather-resistant SBR rubber
Web thickness 0.25 in (6.4 mm)
Available by the foot or in—10.0 ft (3.1 m), 11.0 ft (3.4 m), 70.0 ft (21.34 m), 80.0 ft (24.4 m) and 100.0 ft (30.5 m) lengths. Maximum continuous length is 450 ft (137 m).

Information

Seal the cracks around your pit-type truck scale to prevent gravel and debris from entering the pit. The T-shaped strip easily installs between the frame and scale, and is available in various lengths or by the foot.

T-Strip Molding Dimensions:

Part #	H		W		W1		Length
Part #Note: Maximum continuous length is 450 ft. Call for price and availability.
Part #18736	H2.00 in	50.8 mm	W4.50 in	114.3 mm	W10.25 in	6.4 mm	LengthSold by the foot
Part #18776	H2.00 in	50.8 mm	W4.50 in	114.3 mm	W10.25 in	6.4 mm	Length10 ft/3.05 m
Part #18797	H2.00 in	50.8 mm	W4.50 in	114.3 mm	W10.25 in	6.4 mm	Length11 ft/3.35 m
Part #18798	H2.00 in	50.8 mm	W4.50 in	114.3 mm	W10.25 in	6.4 mm	Length70 ft/21.34 m
Part #33223	H2.00 in	50.8 mm	W4.50 in	114.3 mm	W10.25 in	6.4 mm	Length80 ft/24.4 m
Part #33224	H2.00 in	50.8 mm	W4.50 in	114.3 mm	W10.25 in	6.4 mm	Length100 ft/30.5 m

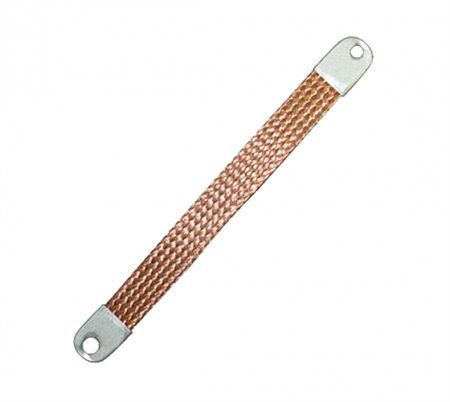

RICE LAKE Grounding Strap

Used in the ITCM assembly
Tinned copper braid
Crimped sleeve on ends with 0.25 in (6.4 mm) hole
Available in 12 in (304.8 mm), 14 in (355.6 mm), 16 in (406.4 mm), 24 in (609.6 mm) or 32 in (812.8 mm) lengths

Information

Grounding straps are designed as an electrical grounding connection between two terminals. The tinned copper braid provides a flat, flexible strap that can be used between movable, vibrating components. In retrofit applications, a grounding strap is an ideal way to install additional shielding to your cable.

Grounding Strap Dimensions:

Part #	Length
Part #17778	Length12 in	304.8 mm
Part #17779	Length14 in	355.6 mm
Part #17780	Length16 in	406.4 mm
Part #17781	Length24 in	609.6 mm
Part #17782	Length32 in	812.8 mm
Part #Inportant: Read “Load Cell Mounting Hardware Safety Guidelines” at the beginning of this section.

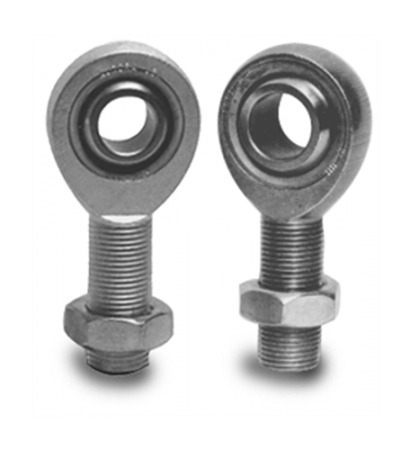

RICE LAKE Rod End Ball Joints

Used in the ITCM assembly
One jam nut included with each rod end ball joint
Standard or PTFE-lined
Optional stainless steel provides enhanced corrosion resistance for hostile environments

Information

Where a flexible connection is required, rod end ball joints always have a spherical ball that may or may not be fitted with a stud.

Part #	Safe Load*	Breaking Strength	PTFE Lined
Part #*Do not exceed the safe load
Part #Mild Steel
Part #17746	Safe Load*975 lb (453.6 kg)	Breaking Strength3,915 lb (1,913.3 kg)	PTFE LinedYES
Part #17734	Safe Load*1,200 lb (544.3 kg)	Breaking Strength4,916 lb (2,229.9 kg)	PTFE LinedNO
Part #17736	Safe Load*4,000 lb (1,814.4 kg)	Breaking Strength16,238 lb(7,365.5 kg)	PTFE LinedNO
Part #17738	Safe Load*7,000 lb (3,175.2 kg)	Breaking Strength28,081 lb (12,737.4 kg)	PTFE LinedNO
Part #17735	Safe Load*2,000 lb (907.2 kg)	Breaking Strength8,075 lb (3,662.8 kg)	PTFE LinedNO
Part #17737	Safe Load*3,250 lb (1,474.2 kg)	Breaking Strength13,831 lb (6,273.7 kg)	PTFE LinedNO
Part #17739	Safe Load*500 lb (226.8 kg)	Breaking Strength2,158 lb (978.9 kg)	PTFE LinedYES
Part #17740	Safe Load*4,000 lb (1,814.4 kg)	Breaking Strength16,238 lb (7,365.5 kg)	PTFE LinedYES
Part #17741	Safe Load*10,000 lb (4,535.9 kg)	Breaking Strength40,572 lb (18,403.2 kg)	PTFE LinedYES
Part #17742	Safe Load*10,500 lb (4,762.7 kg)	Breaking Strength43,541 lb (19,749.9 kg)	PTFE LinedNO
Part #26007	Safe Load*15,000 lb (6,803.9 kg)	Breaking Strength76,200 lb (34,563.8 kg)	PTFE LinedYES
Part #17747	Safe Load*19,000 lb (8,618.3 kg)	Breaking Strength76,200 lb (34,563.8 kg)	PTFE LinedYES
Part #17743	Safe Load*20,000 lb (9,071.9 kg)	Breaking Strength79,728 lb (36,164.1 kg)	PTFE LinedNO
Part #17744	Safe Load*24,000 lb (10,886.2 kg)	Breaking Strength96,510 lb (43,776.3 kg)	PTFE LinedNO
Part #Stainless Steel
Part #33506	Safe Load*1,500 lb (680.4 kg)	Breaking Strength7,362 lb (3,339.4 kg)	PTFE LinedYES
Part #33505	Safe Load*500 lb (226.8 kg)	Breaking Strength2,158 lb (978.9 kg)	PTFE LinedYES
Part #33507	Safe Load*3,000 lb (1,360.8 kg)	Breaking Strength16,238 lb (7,365.5 kg)	PTFE LinedYES
Part #33508	Safe Load*7,000 lb (3,175.2 kg)	Breaking Strength40,572 lb (18,403.2 kg)	PTFE LinedYES

Rod End Ball Joints Dimensions

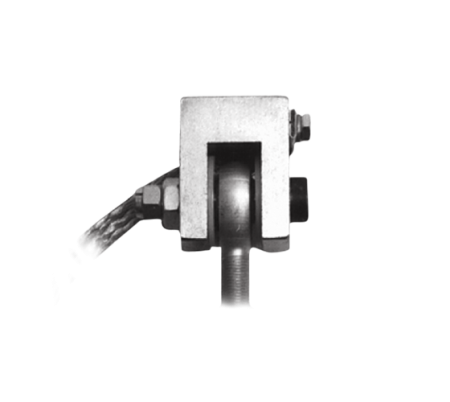

RICE LAKE Clevis Mount Assemblies

Mild steel
Assembly used in the ITCM
Adapts rod to rod-end ball joint
Provides electrical isolation for load cell protection
Elimination of unwanted side loads
Optional stainless steel provides enhanced corrosion resistance

Clevis Mount Assemblies Dimensions

Part #	A		B		C		D		Thread Size	Safe Load*
Part #*Do not exceed the safe load
Part #Mild Steel with Bolt
Part #17792	A0.52 in	13.2 mm	B2.38 in	60.5 mm	C1.94 in	49.3 mm	D0.38 in	9.5 mm	Thread Size3/8-16 UNC	Safe Load*300 lb (136.1 kg)
Part #17793	A0.52 in	13.2 mm	B2.38 in	60.5 mm	C1.94 in	49.3 mm	D0.38 in	9.5 mm	Thread Size1/2-13 UNC	Safe Load*300 lb (136.1 kg
Part #17783	A0.39 in	9.9 mm	B1.81 in	46.0 mm	C1.69 in	42.9 mm	D0.25 in	6.4 mm	Thread Size1/2-13 UNC	Safe Load*500 lb (226.8 kg)
Part #17784	A0.65 in	16.5 mm	B2.68 in	68.1 mm	C2.31 in	58.7 mm	D0.50 in	12.7 mm	Thread Size3/4-10 UNC	Safe Load*4,000 lb (1,814.4 kg)
Part #17785	A0.78 in	19.8 mm	B3.37 in	85.6 mm	C3.00 in	76.2 mm	D0.62 in	15.8 mm	Thread Size1-8 UNC	Safe Load*10,000 lb (4,535.9 kg)
Part #17786	A0.39 in	9.9 mm	B1.81 in	46.0 mm	C1.69 in	42.9 mm	D0.25 in	6.4 mm	Thread Size3/8-16 UNC	Safe Load*500 lb (226.8 kg)
Part #17787	A0.65 in	16.5 mm	B2.68 in	68.1 mm	C2.31 in	58.7 mm	D0.50 in	12.7 mm	Thread Size1/2-13 UNC	Safe Load*2,000 lb (907.2 kg)
Part #17788	A0.65 in	16.5 mm	B2.68 in	68.1 mm	C2.31 in	58.7 mm	D0.50 in	12.7 mm	Thread Size5/8-11 UNC	Safe Load*2,500 lb (1,134.0 kg)
Part #17789	A0.78 in	19.8 mm	B3.37 in	85.6 mm	C3.00 in	76.2 mm	D0.62 in	15.8 mm	Thread Size3/4-10 UNC	Safe Load*5,000 lb (2,268.0 kg)
Part #Mild Steel with Pin
Part #17790	A1.39 in	35.3 mm	B4.12 in	104.6 mm	C4.50 in	114.3 mm	D1.00 in	25.4 mm	Thread Size1 1/4-7 UNC	Safe Load*15,000 lb (6,803.9 kg)
Part #17791	A1.22 in	31.0 mm	B4.12 in	104.6 mm	C5.00 in	127.0 mm	D1.25 in	31.8 mm	Thread Size1 1/2-6 UNC	Safe Load*20,000 lb (9,071.9 kg)
Part #Stainless Steel with Pin
Part #33644	A0.52 in	13.2 mm	B2.38 in	60.5 mm	C1.94 in	49.3 mm	D0.38 in	9.5 mm	Thread Size1/2-13 UNC	Safe Load*300 lb (136.1 kg)
Part #33643	A0.39 in	9.9 mm	B1.81 in	46.0 mm	C1.69 in	42.9 mm	D0.25 in	6.4 mm	Thread Size1/2-13 UNC	Safe Load*500 lb (226.8 kg)
Part #33641	A0.39 in	9.9 mm	B1.81 in	46.0 mm	C1.69 in	42.9 mm	D0.25 in	6.4 mm	Thread Size3/8-16 UNC	Safe Load*500 lb (226.8 kg)
Part #33658	A0.52 in	13.2 mm	B2.38 in	60.5 mm	C1.94 in	49.3 mm	D0.38 in	9.5 mm	Thread Size3/8-16 UNC	Safe Load*500 lb (226.8 kg)
Part #33642	A0.65 in	16.5 mm	B2.68 in	68.1 mm	C2.31 in	58.7 mm	D0.50 in	12.7 mm	Thread Size3/4-10 UNC	Safe Load*4,000 lb (1,814.4 kg)
Part #33640	A0.65 in	16.5 mm	B2.68 in	68.1 mm	C2.31 in	58.7 mm	D0.50 in	12.7 mm	Thread Size1/2-13 UNC	Safe Load*2,000 lb (907.2 kg)
Part #33639	A0.65 in	16.5 mm	B2.68 in	68.1 mm	C2.31 in	58.7 mm	D0.50 in	12.7 mm	Thread Size5/8-11 UNC	Safe Load*2,500 lb (1,134.0 kg)
Part #33638	A0.78 in	19.8 mm	B3.37 in	85.6 mm	C3.00 in	76.2 mm	D0.62 in	15.8 mm	Thread Size3/4-10 UNC	Safe Load*5,000 lb (2,268.0 kg)

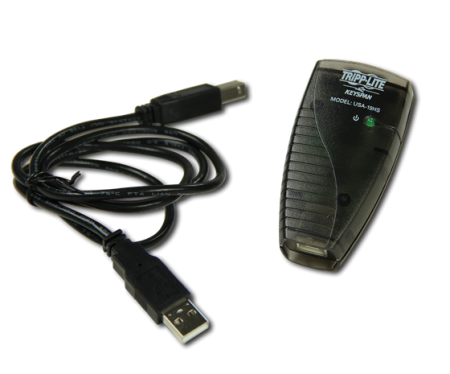

RICE LAKE Tripp-Lite USB to Serial Converter / Adapter

Portable design—no AC power required
Simple plug-and-play setup
Supports data transfer rates of more than 500 kbps
Hot swappable

Information

Use the Tripp-Lite Converter for serial conversion from your USB device. Lightning fast data transfer rates come from a simple plug-and-play setup.

Tripp-Lite USB to Serial Converters Specifications

Data Transfer Rate:
More than 500 kbps
LED:
Data transfer/handshaking (orange)
Power Consumption:
450 mW
USB Specification:
V1.1 compliant

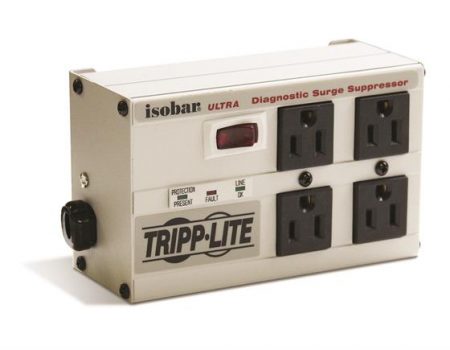

ISOBAR® AC Transient Protector

Four outlets
Six-foot cord with grounded three-prong plug
Lighted on/off switch
Circuit breaker protected
Multiple filter design prevents the different components of your system from interfering with each other
UL1449 listed at 330 volts
Exclusive isolated filter banks prevent equipment interaction
ISOBAR’s cascade circuitry allows you to choose more protection for your most sensitive equipment and a lesser degree of protection for equipment with more tolerance

Information

The Isobar® AC Transient Protector features four outlets for two isolated filter banks to prevent equipment interaction, and two outlets for basic or maximum level equipment protection. This cascade circuitry feature allows you to customize your security level based on equipment sensitivity.

ISOBAR Specifications

Clamp Voltage:
140 V rms

Peak Surge Current:
13,000 amps

Clamping Time:
Less than five nanoseconds

Input Voltage:
120 VAC

Maximum Current:
15 amps

Maximum Power:
1,875 watts

Noise Suppression:
Frequency Attenuation
50 KHz>20 db
150 KHz>40 db
1 MHz>80 db
>6 MHz>30 db

Dimensions:
6.15 W x 3.56 H x 2.48 in D
(156.2 W x 90.4 H x 63.0 mm D)

Weight:
Approximately 2 lb (0.91 kg)

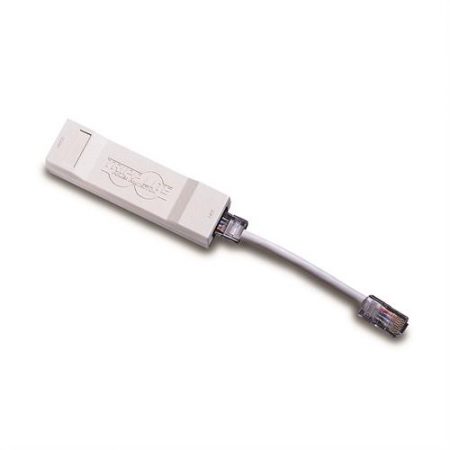

TRIPP-LITE DNET1 Ethernet Surge Suppressor

RJ45 input and output connections
Five inch Ethernet patch cable enables ideal protection placed as close as possible to the point of use
Six inch heavy gauge lead connects to designated grounding lugs on protected equipment
Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground

Information

The Tripp-Lite DNET1 Network Surge Suppressor diverts excess energies to a ground using high speed avalanche diodes. This is ideal for NICs, terminals, hubs, MAU and LAN equipment.

Tripp-Lite DNET1 Specifications

Interface Type:
RJ45

Application:
100 Base-T, 10 Base-T, Token Ring, AS400/Sys3x, RS-422. Ideal for NICs, terminals, hubs, MAUs, LAN equipment. RJ11/45-compatible. RJ45 cable included

Lines Protected:
1-8

Peak Pulse Clamping Voltage:
7.5 V

Maximum Current:
750 amps

Shunt Capacitance:
<40 μF

Warranty:
One-year limited warranty

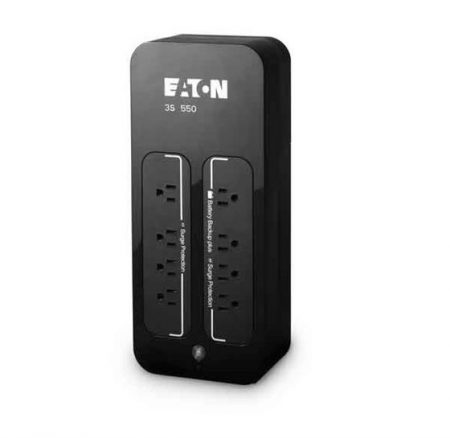

EATON 3S/5S Uninterruptible Power Supply

Five outlets with surge protection (both)
Five outlets with battery back up and surge protection
Coax surge protection (5S)
Replaceable battery

Information

The Eaton 35/5S power supply has five outlets with surge protection and also five outlets with battery back up and surge protection.

Eaton 3S/5S Specifications

Input Voltage Range (for online operation):
89-151 VAC (3S)
93-138 VAC (5S)

Operating Frequency (online):
50/60 Hz out sensing

UPS and Surge Protection:
Both models

Safety Markings:
UL, CUL, NOM

Data Line Protection:
Yes

Indicators:
Power, LED

Alarms:
No

Dimensions:
Model 3S: (H x W x D) 3.4 x 5.5 x 13.2 in
Model 5S: (H x W x D) 9.8 x 3.4 x 10.2 in

Warranty:
Three-year limited warranty

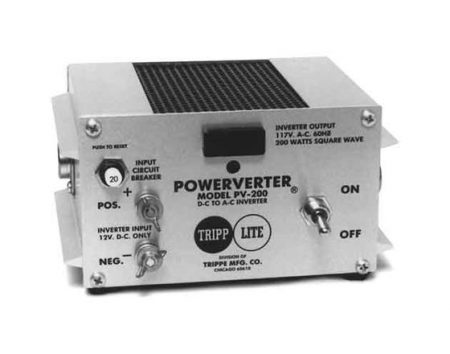

TRIPP-LITE PV Series Power Convertor

Two 5-15R outlets
Convenient on/off switch
120 VAC 60 Hz sine wave output
Transistorized and solid state for long life and quiet operation
Packaged in a compact, rugged aluminum case
Three-foot cord with DC plug

Information

The Tripp-Lite PV Series power inverter can be turned on or off with a switch for optional power when needed. Transistorized for long life, the Tripp-Lite PV has a maximum output of 120 VAC to maintain power to any standard voltage device.

Tripp-Lite PV Series Specifications

Input VDC:
PV-375—12 V

Output VAC:
PV-375—120 VAC

Frequency Hz:
PV-375—60 Hz

Maximum Output Continuous:
PV-375—375 Watts

Maximum Output Intermittent:
PV-375—375 Watts

Input AMP – No Load:
PV-375—.65 Amps

Input AMP – Full load:
PV-375—40 Amps

Enclosure:
Non-sealed aluminum

Dimensions:
(W x H x D) 4.25 x 2 x 7 in

Warranty:
One-year limited warranty

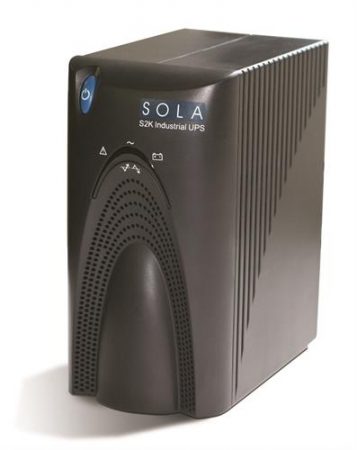

SOLA S1K/S3K Uninterruptible Power Supply

Offline with Automatic Voltage Regulation (AVR) topology
Protects against most adverse power conditions, including: frequency variations, surge, noise, blackouts, lightning, spike, brownouts, and over and under voltages
Data-line surge protection for phone or network included on every unit
Greater uptime with intelligent power management, full-sequence battery testing and two-level overload protection

Information

The Sola Uninterruptible Power System protects against most adverse power conditions. The Sola offers data-line surge protection for phone or network. For optimal protection, power, and performance, the Sola Uninterruptible Power Supply is the elite device for battery backup.

Sola S1K/S3K Specifications

Input Voltage Range (for online operation):
115 VAC: +20%/-25%

Operating Frequency (online):
50/60 Hz ±1 Hz auto sensing

Overload Capacity:
120% ±10% (Three minutes on line mode, 10 seconds on battery)

Transfer Time:
Four ms typical

On Battery Voltage:
115 VAC: 115 VAC rms ±10%

Output Voltage Waveform:
Step Sine Wave at 115 V

Output Protection:
Electronically limited

Input Protection:
Circuit breaker

Recharge Time (to 95% capacity):
Four hours

Lightning & Surge Protection:
ANSI/IEEE C62.41 categories A & B, IEC801.4, 801.5

Safety Certification:
115 VAC: UL listed to 1778, designed to meet UL497A, CSA certified to CSAC22.2 No. 107.1

EMI Compliance:
115 VAC: FCC Class B

Data Line Protection:
115 VAC: fax/modem, network

Indicators:
Online/utility fail/overlaid/replace battery

Audible Alarms:
Utility fail/overload/replace battery

Dimensions (inches) H x W x D:
S1K: (H x W x D) 5.3 x 3.8 x 12.6 in
S2K: (H x W x D) 8.3 x 5.5 x 17.2 in

Warranty:
Two-year limited warranty

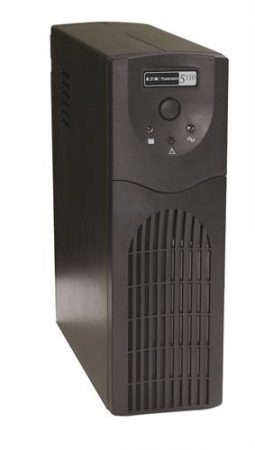

Powerware® 3105 Series Uninterruptible Power Supply

UL listed, C-UL listed to Canadian standards
Small unobtrusive design
LED indicators and audible alarms warn of power problems and low battery conditions
User-replaceable battery
Cold-start capability
Data line protection

Information

With a surge energy capacity of over 400 Joules, the Powerware® 3105 has an excellent surge rating and provides consistent energy back-up to your most important devices. The small design stays neatly stored and LED indicators and audible alarms warn you of low battery life and other power issues.

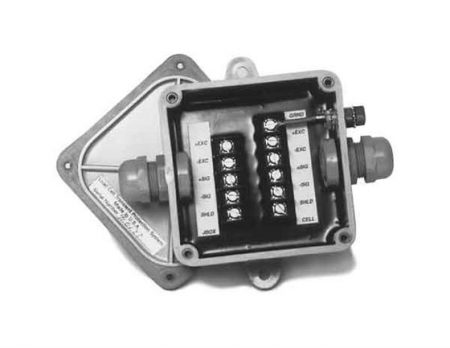

RICE LAKE LCP-1 DC Transient Protector

Low cost, non-serviceable
Effective series protection for strain gauge transducers
Encapsulated circuitry ensures positive protection against fungus or corrosion on boards
Two nylon strain reliefs for 0.187 in-0.312 in (4.7 mm-7.9 mm) diameter cable

Information

The economical LCP-1 DC Transient Protector can be used indoors or outdoors. It provides series protection for strain gauge transducers.

LCP-1 DC Transient Protection Specifications

Protection Type:
Four-channel series type with separate shield

Maximum Excitation Voltage:
18 VDC or 18 VAC

Clamping Voltage:
75 VDC or 75 VAC

Clamping Time:
<100 nanoseconds typical

Peak Surge Currents:
5,000 Amps any line to ground and 5,000 Amps excitation to excitation
Maximum Serial Transmission Rate:
30 Kbaud

Grounding:
Through a .25 in (6.35 mm) lug to a 20 ft (6.1 m) insulated #10 AWG ground wire provided

Cable Fitting:
(2) Standard nylon strain relief for 0.187 in-0.312 in (4.7 mm-7.9 mm) diameter cable

Enclosure:
Chemically-resistant PVC. This device, for outdoor or indoor service, is not intended for washdown service (NEMA 4) or for submersion (NEMA 6). Optional NEMA 4X available

Operating Temperature:
14°F to 104°F (-10°C to 40°C) consistent with NTEP guidelines

Leakage:
7,500 MΩ minimum

Dimensions:
4.0 W x 4.0 H x 2.50 in D (103.2 W x 103.2 H x 63.5 mm D)

Warranty:
One-year limited

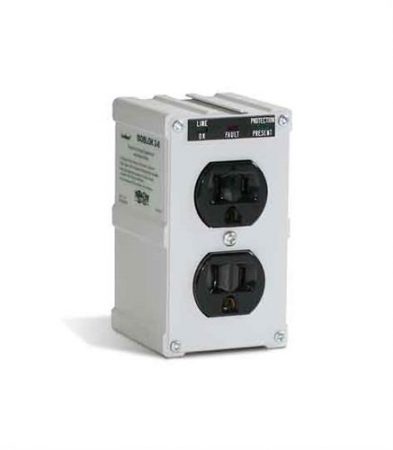

ISOBLOK® AC Transient Protector

Two outlets, direct plug-in
LED indicator for power on
LED indicator for protection circuitry
UL1449 listed at 330 volts
Mounting clamp assures positive connection

Information

The Isoblok® AC Transient Protector offers two direct plug-in outlets and two LED indicators for power and protection circuitry. The Isoblok AC should be used on lines where spikes, noise and interference occur.

ISOBLOK Specifications

Clamp Voltage:
140 V rms

Peak Surge Current:
6,500 Amps

Clamping Time:
20 db
150 KHz>40 db
1 MHz>80 db
>6 MHz>30 db

Dimensions:
2.37 W x 4.15 H x 2.31 in D (60.2 W x 105.4 H x 58.7 mm D)

Weight:
Approximately 1 lb (0.45 kg)

RICE LAKE EL226 AC Transient Protector

Duplex receptacle
20ft (6.1m) ground cable
Factory serviceable
9 ft (2.7m) cord with three-prong plug
Stainless steel industrial enclosure
Plugs into any grounded three-prong outlet
Indicator light shows protection is secure
Excellent as a prefilter for voltage regulators
Reliability and quality top-of-the-line performance
Shielded line cord for protection against induced transients
Positive proven protection for scales, computers and printers
Convenient mounting holes; can be mounted on any surface

Information

The EL226 AC Transient Protector is designed to filter voltage spikes and electrical noise from AC wall receptacles that provide power to sensitive equipment. The reliable EL226 can be mounted on any surface, providing optimal protection for scales, computers and printers.

EL226 Specifications

Operating Voltage:
120 VAC 50/60 Hz, nominal

Maximum Current:
10 rms instantaneous, 7.5 rms continuous

Clamping Time:
Less than three to five nanoseconds

EMI/RFI Protection:
13 stages

Protection Type:
13-stage filters out both common and normal mode transients

Grounding:
20 ft (6.1 m) insulated #10 AWG wire provided

Enclosure:
Stainless steel

Operating Temperature:
14°F to 104°F (-10°C to 40°C)

Circuit Board:
Fiberglass-reinforced 4-glass epoxy

Dimensions:
(W x H x D) 8.00 x 6.00 x 2.50 in
(203.2 x 152.4 x 63.5 mm)

Warranty:
One-year limited warranty

EL226AC Transient Protection Dimensions

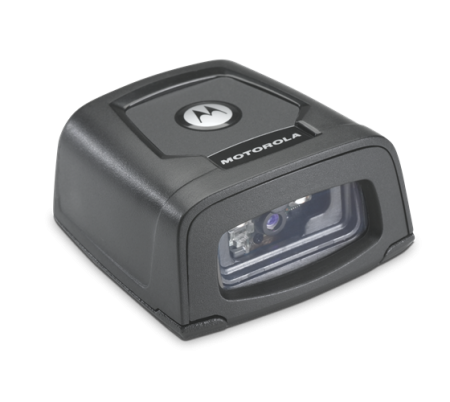

Motorola DS457 Laser Scanner

High-speed omnidirectional scan pattern
Rugged, durable housing
Sealed to IP54 standards
Reads 1D and 2D symbols
Supports 123Scan2 configuration tool
Enables rapid and easy customized setup through a free, wizard-based PC software tool
Scans any barcode on paper, mobile phones and computer displays

Motorola DS457 Specifications

Dimensions:
1.15 (H) x 2.3 (L) x 2.44 in (W)
2.92 (H) x 5.84 (L) x 6.2 cm (W)

Weight:
3.9 oz (111 g)

Power Maximum:
5 VDC +/- 10% at 450 mA

Performance Characteristics:
Sensor Resolution 752 (H) x 480 (V) gray scale
Imager Field of View DS457 SR: 39.6° horizontal, 25.7° vertical
Aiming Element 655 ± 10 nm (VLD)
Illumination Element 625 ± 5 nm (LED)

Symbology Decode Capability:
1D All major 1D bar codes
2D PDF417, DataMatrix, QR Code, Aztec,
Composite Codes and MaxiCode
Postal US Postnet, US Planet, UK Postal, Australian
Postal, Japan Postal

Communications:
Interfaces Supported 9-Pin male D-sub USB (full speed) and TTL level RS-232 with
RTS and CTS

Operating Temperature:
-4° to 122°F (-20° to 50°C*) (* Laser aimer disabled above 113°F /45°C)

Storage Temperature:
-40° to 158°F (-40° to 70°C) Storage: 85% RH, non-condensing at 70°C

Ingress Protection Rating:
IP54

Humidity:
95% RH, non-condensing at 50°C

Drop Resistance:
Withstands multiple 30 in (76 cm) drops to concrete

Image File Formats:
BMP, TIFF, JPG

Regulatory:
Electrical Safety ETL, VDE, CETL, EN60950, Ctick, VCCI
Laser Classification Intended for use in CDRH Class II/IEC 825 Class I devices
EMI/RFI FCC Part 15 Class B, ICES-003 Class B, CISPR22 Class B

Warranty:
Three-year warranty against defects in workmanship and materials

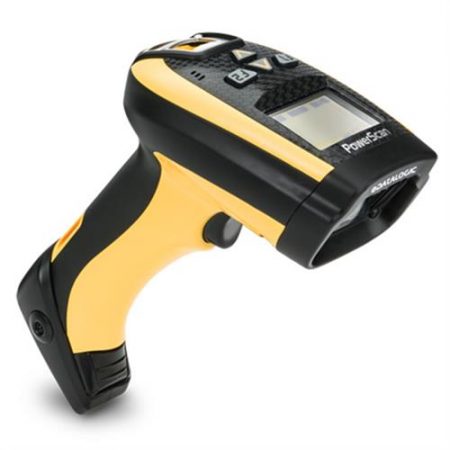

RICE LAKE Datalogic PowerScan RF PM9300 Series Laser Scanner

Scanner is IP65
Base station is IP64
Wireless operation
Operates up to 10 hours on a single charge
Datalogic Green spot for good read feedback
Polycarbonate molded with rubber
Multi-point operation allows for multiple scanner communications to a single base station

Datalogic PowerScan PM9300 Series Specifications

Dimensions:
Scanner: 8.4 x 4.5 x 2.8 in
(212 x 109 x 71 mm)
Base Station: 10.5 x 3.5 x 2.5 in
(266.7 x 88.9 x 63.5 mm)
(width is 4.2 in/106.68 mm including mounting knobs)

Weight:
Scanner: 14.2 oz (405.0 g)
Base Station: 16 oz (454 g)

Display:
LCD: 6 lines x 16 characters

Light Source:
VLD between 630-380 nm

Base Station:
US: 110 V±10%, 60 Hz

Communications:
Host: RS-232 with DB9 S, P/S and 12 ft cable.
KBW (keyboard wedge) with P/S and 6 M Din, coiled cable 12 ft.
USB, 12 ft coiled cable

Frequency Range: (varies by country)
915 mHz

Operating Temperature:
-4˚F to 122˚F (-20˚C to 50˚C)

Storage Temperature:
-40˚F to 158˚F (-40˚C to 70˚C)

Ingress Protection Rating:
Scanner: IP65
Base station: IP64

Humidity:
0-90% non-condensing

Drop Resistance:
2 m

Battery Type:
Li-Ion 2150 mAh

Electrical:
Complies to C-CSA-US
(60950 Canada and USA)

Warranty:
Three-year limited warranty

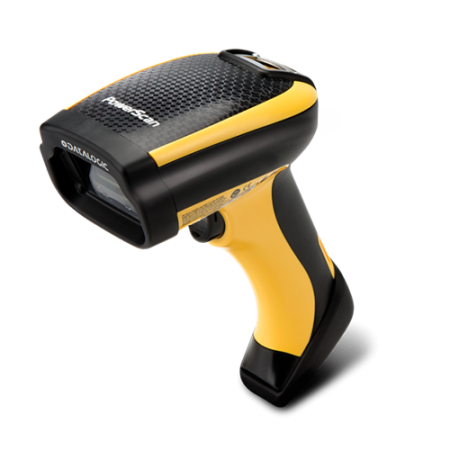

Datalogic PowerScan PD9330 Series

Information

The PD9330 reader features Datalogic’s exclusive 3 Green Lights (3GL™) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.

The PD9330 reader’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations. A built-in metal tether hook for suspended applications ensures workplace productivity.

All models have multi-interface capabilities built in featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.

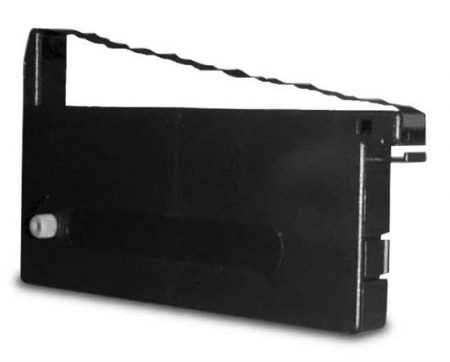

RICE LAKE Tape and Ticket Printer Impact Ribbons

TicketPress:

Cartridge-type
Ribbon life approximately 3 million characters

SP2200 and SP2000:

Cartridge-type
Ribbon life is approximately 1 million standard characters

IDS-150A, IDS-152, and IDS-160:

Inked spools

TM-U295, TM-U200, TM-300:

Cassette-type
TM-U295: Ribbon life is approx. 1.5 million standard characters
TM-U200 and TM-300: Ribbon life is approx. 4 million characters (continuous printing)

Citizen® CBM-750 and Citizen® iDP-3111:

Cassette-type
CBM-750: Ribbon life is approx. 4 million lines (continuous printing) iDP-3111: Ribbon life is approx. 1 million lines (continuous printing)

Okidata 184 Turbo and 320:

Self-inking
Ribbon life is approximately 3 million characters

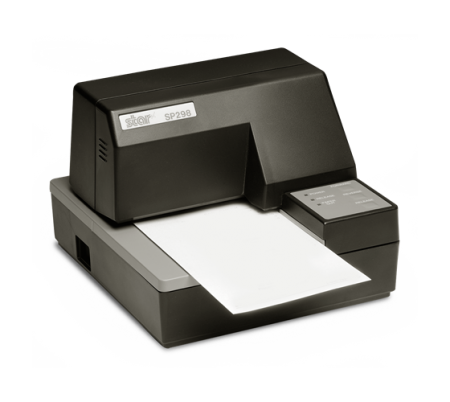

DH4000 and Toledo 8806A, SP298, SP2320 and SP2520, LC-7211, SP349 and SP300, DP8340:

Cassette-type

RICE LAKE Tape Printer Paper Supplies

IDS-150A, IDS-152, IDS-160, TM-U200, TM-300, and Citizen® CBM-750:

One-ply paper roll (W x L): 3 in x 150 ft (76.2 mm x 45.7 m)
Two-ply paper roll (W x L): 3 in x 90 ft (76.2 mm x 27.4 m)

Citizen® iDP-3111:

One-ply paper roll (W): 2.25 in (57.1 mm)

Star®:

One- and two-ply paper roll (W x L): 3 in x 3 ft (76.2 mm x 0.9 m)
One-ply thermal paper roll (W x L): 3.125 in x 3.25 ft (76.2 mm x 0.99 m), 8 in roll dia.

RICE LAKE Electronic Scale Tickets

Weigh Tech offers a wide variety of sizes and styles of scale tickets as well as both carbon and carbonless versions. Please contact us today for more information!

Hecon® Printers, EL522 & EL516 – 20266

Carbon triplicate interleaved
Size (W x L): 4.25 in x 7.875 in (127 mm x 200 mm)
Order quantity: 500 per package

SP2200, SP2000 – 20265

Carbon triplicate interleaved, perforated and glued on one end
Size (W x L): 5.5 in x 9 in (139.7 mm x 228.6 mm)
Order quantity: 500 per package

Rice Lake Scales – 71630 or 105182

Carbonless duplicate or triplicate
Size (W x L): 4.25 in x 7 in (107 mm x 177.8 mm) attached at 4.25 side
Order quantity: 500 per package
Custom (Duplicate): Add company name (min. order two packs)
Custom (Triplicate): Add company name (min. order two packs)

Blank Scale Ticket – 22263

3-part carbonless
White, canary yellow and pink
Size (W x L): 4.25 in x 5.5 in (108 mm x 140 mm)
Attached at 4.25 edge
Custom: Add company name (min. order of 1,000)

RICE LAKE Mechanical Scale Tickets

Fairbanks™ Scales – 20260

Carbon triplicate with 2 in (50.8 mm) tear-off flap
Size (W x L): 4.75 in x 1.875 in (120.7 mm x 47.6 mm)
Order quantity: 500 per package

Howe™ Scales – 20261

Carbon triplicate with 2 in (50.8 mm) tear-off flap
Size (W x L): 5.5 in x 1.75 in (139.7 mm x 44.5 mm)
Order quantity: 500 per package

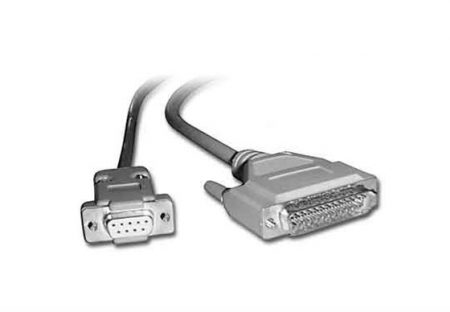

RICE LAKE Printer Cables

Interface Cables for TicketPress, SP-2200, TM-U295, TM-U590 and Star® Printers
15547 – Blunt end, 25-pin D-sub male RS-232 serial interface cable
15548 – 25-pin D-sub male to 25-pin D-sub male 20mA serial interface cable (SP2200 only)
15568 – 25-pin D-sub male to 25-pin D-sub male RS-232 serial interface cable
Consult – Custom 20mA/RS-232 serial interface cable

Interface Cables for I-Class
15547 Blunt end, 25-pin D-sub male RS-232 serial interface cable
Consult Custom RS-232 interface cable

Interface Cables for Desktops, GoDEX Models, Zebra, E-4203 and M-4206
41276 DB9 male RS-232 cable to blunt end

Straight Cable
70056 DB9 male to DB9 female
50749 DB9 female to DB9 female
41279 DB25 male to DB9 male
72440 DB25 male to DB9 female

Null Modem Cable
66535 DB9F to DB9 female, Null modem
64794 DB9 male to DB9 female

USB Cable
79074 USB-A (male) to USB-B (male) cable, 6 ft
153603 USB to nine-pin Male RS-232 adapter

Ethernet Cable/RJ45
72697 RJ45 to RJ45, 7 ft
78860 RJ45 to RJ45, cross over 7 ft
75594 RJ45 to nine-pin female

Misc. Cables and Adapters
22436 Blunt end, nine-pin D-sub female
130213 Blunt end DB25 male
165698 Female to male gender changer
119064 Slimline, Null modem gender changer, DB9 female/female
130789 Null modem DB9 M/F

Blunt-end cables interface to: UMC444, UMC555, UMC600, IQ700, IQ plus® 310A, IQ plus® 355, IQ plus® 390-DC, IQ plus® 510, IQ plus® 590-DC, IQ plus® 710, IQ plus® 800, and IQ plus® 810, 520 and 920i® Custom cables are designed to interface with your specific equipment. Please specify equipment model number and connector type. Standard cable length is 5 ft (1.5m).

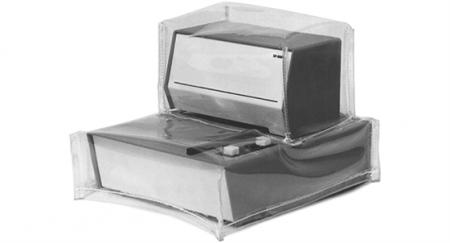

RICE LAKE Printer Dust Covers

Tough, flexible transparent vinyl, constructed with heavy-duty stitching
Loose fit allows for operation of switches or controls through the dust cover
Available for most types of scale equipment

Information

Protect your electronic scales, weight indicators and printers with a dust cover. Reduce costly repairs and down time due to moisture penetrating through instrument enclosures during cleanup or operation.

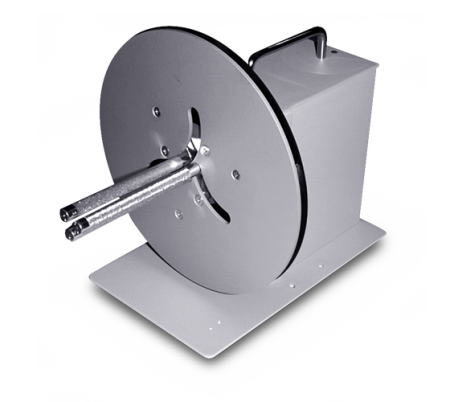

Honeywell DMXREW1

Rewinds or dispenses label rolls up to 4 in (101.6 mm) wide, up to 8 in (203 mm) diameter at 10 in (254 mm) per second
Adjustable core holder
Coreless rewinding
Steel construction
Anti-slip feet
Constant adjustable Torque™ technology
Bidirectional operation
ON-OFF start/stop switch
Inner label flange to keep edge of label web aligned as labels are rewound
Compatible with all Datamax-O’Neil® I Series and Rice Lake SURVIVOR® SST printers

Datamax-O’Neil® DMXREW1 Specifications

Label Width:
Up to 4.5 in (113 mm)

Maximum Label Roll Weight:
8.5 lb (3.9 kg)

Label Roll Diameter:
Up to 8 in (200 mm)

Core Diameter:
Use any cardboard core from 1 in to 4 in (25 mm to 102 mm)

Speed:
Up to 10 ips (25+ mm/sec)
Switch adjustable rewind force
No adjustments are required

Start/Stop:
Convenient ON-OFF switch

Direction:
Bidirectional

Power Requirements:
115 VAC 60 Hz

Overall Size:
(H x W x D) 9 x 6 x 11 in
(229 x 152 x 279 mm)

Weight:
13 lb (5.9 kg)

Approvals:
UL listed, CSA certified

Warranty:
One-year limited warranty on parts and labor

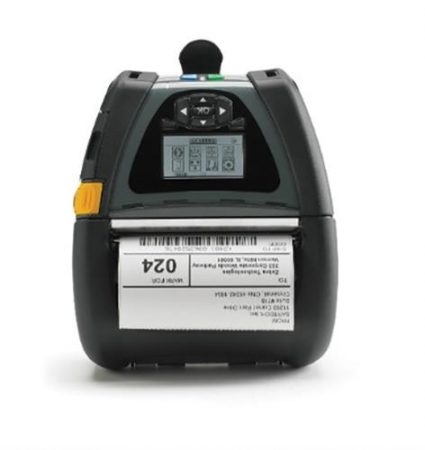

Zebra® QLn420 Mobile Printer

Apple iOS, Android, Windows Mobile and BlackBerry connectivity
Direct thermal printing of barcodes, text and graphics
CPCL, EPL™ and ZPL® programming languages
256 MB Flash memory supports downloadable programs, receipt formats, fonts and graphics (64 MB available for user storage)
PowerPrecision+ 4900 mAh Li-Ion rechargeable battery
Built-in battery charger
Serial and USB ports (both support strain relief)
Belt clip for unobtrusive and convenient printing
Black mark and gap media sensing using fixed center-position sensors
Easy-to-use peel and present mode
Label present sensor for issuing labels one at a time
Tear bar for easy dispensing
Center-loading media locking for variable roll widths
“Clamshell” design for easy media loading
Management: Mirror, SNMP, Web server, Profile Manager, AirWatch and Wavelink Avalanche®
Large, easy-to-read LCD control panel (240 x 128 pixels)
LCD can be customized using WML (text and icons)
Printer alerts on the display, help menus
Tolerance of multiple drops from 6′ / 1.8 m to concrete
IP43 dust- and water-resistance rating (IP54 with soft case)
400 MHz 32-bit ARM processor
XML support
Supports vertical and horizontal printing
Printers can be used in any orientation
QR barcode links to web-based help pages
Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with NFC-enabled devices
Label odometer
NTP (Network Time Protocol) support via WiFi or Ethernet

Information

The Zebra® QLn420 mobile printer performs thermal printing on the go, with easy integration into existing networks and connectivity to popular devices such as Apple iOS, Android, Windows Mobile and BlackBerry. Drop-resistant molding and a tempered-glass display make this printer extremely durable. The 256 MB flash memory enables quick graphic formatting and downloading for customized printing. Easy-tear mode and a serrated strip permits seamless receipt and label dispensing anywhere.

Zebra QLn420 Mobile Printer Specifications

Paper Width:
4.40 in

Paper Thickness:
3.2 mil to 7.5 mil

Paper Diameter (OD):
2.6 in

Paper Roll Shaft:
0.75 in

Resolution:
203 dpi

Memory:
128 MB RAM / 256 MB Flash

Print Width:
4.10 in

Bar Code Symbologies:
Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, UCC/EAN 128, UPC-A, UPC-E, PDF417, Micro PDF417, QR Code, TLC39

Maximum Print Length:
32 in

Maximum Print Speed:
4 ips

Media Sensors:
Black mark, Gap

Interface:
RS-232, USB, WiFi, Bluetooth®

Operating Characteristics:
Operating temperature: -4° F to 122° F
(-20° C to 50° C)

Approvals:
CE, UL, TUV, CSA

Physical Characteristics:
Width: 6.5 in
Height: 7.35 in
Depth: 3.25 in
Weight: 2.45 lb

Warranty:
One-year warranty

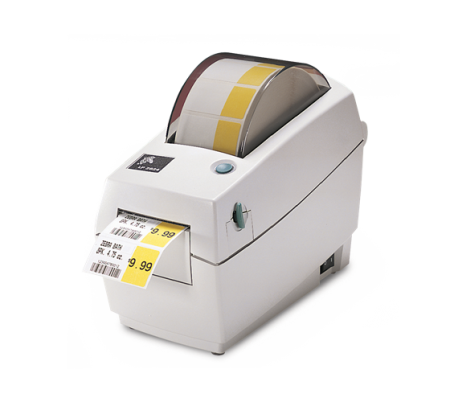

Zebra ZD 410/TLP 2824 Plus Thermal Printer

Print speeds of 4 in (102 mm) per second
203 dpi print resolution (8 dots/mm)
Open ACCESSTM design for easy media loading
Direct thermal (ZD 410) and thermal transfer (TLP) printing of barcodes, text and graphics
Fully enclosed 5.0 in (127 mm) media compartment
Double-walled ABS case construction
EPL and ZPL® programming language, co-resident
32-bit RISC processor
8 MB SDRAM, 4 MB flash memory
Zebra E3 print head energy control
Auto-calibration of media
Five resident expandable EPL2® fonts
Auto-switching 100 V and 240 V power supply
Linear and 2-D bar code symbologies
Transmissive and reflective media sensing
Head-up sensor
Tear-off mode
Certified Microsoft® Windows® drivers

Zebra ZD 410/TLP 2824 Plus Specifications

Resolution:
203 dpi (8 dpmm)

Print Length:
0.005 in to 39.0 in (0.125 mm to 991 mm)

Print Width:
0.005 in to 2.2 in (0.125 mm to 56 mm)

Print Speed:
2 in to 4 in per second (ips)

Media Specifications:
Width: 1.00 in to 2.36 in (25 mm to 60 mm)

Communication Specifications:
Centronics parallel (option), USB, 10/100 Ethernet (option), RS-232 (TLP-standard, ZD 410-optional)

Label Length:
Minimum: 0.38 in (9.7 mm)
1.0 in with optional cutter
Maximum 39 in (991 mm)
Inner Core: 1.0 in
Max roll diameter: 5 in
Sensing: gap, black line, notch
Type: roll-fed, fan fold, die cut or continuous with or without black mark, tag stock

Bar Codes:
Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, PLessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS), PDF417, MicroPDF417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec

Power:
100-240 VAC, 50-60 Hz, US power cord

Operating Temperature:
-40oF to 105oF (-40oC to 40.5oC)

Dimensions:
(L x W x H): 5.3 x 9.5 x 7.0 in
(135 x 241 x 178 mm)

Weight:
3.5 lb

Warranty:
One-year limited warranty

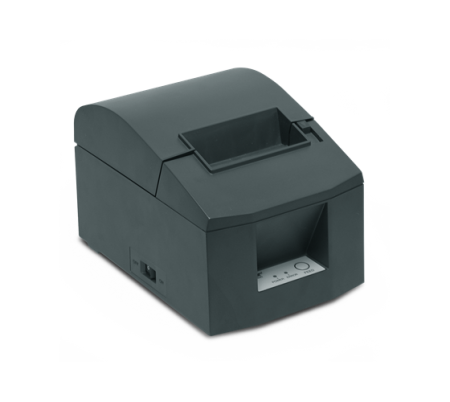

Star® TSP654 ll/TSP743 ll Direct Thermal Printers

203 dpi (8 dots/mm) print resolution
Two-color printing (software enabled)
Small footprint
Easy load “drop-in and print” paper loading
Adjustable paper width
Logo storage utility for easy logo data
Drawer kickout device function
Cutter
Easy to change “cartridge-type interface” from RS-232 to parallel
Swappable communication interface

TSP743

Label printing

Star TSP654II/TSP743 II Specifications

Print Speed:
TSP654: 300 mm per second, 60 RPM
TSP743: 7 in (177.8 mm) per second, 60 lines per second at 3 mm per line
(180 mm/sec)

Print Width:
TSP654: 80 mm paper: 2.83 in (80 mm) 58 mm paper: 2.05 in (52 mm)
TSP743: Standard: 2.83 in (80 mm) Optional: 2.05 in (52 mm), 3.15 in (80 mm)

Line Spacing:
3 mm, 4 mm (1/8 in, 1/6 in)

Resolution:
203 dpi (8 dots/mm)

Number Of Columns:
TSP654: 80 mm paper: 24, 48 or optional 64 (ESC/POS) 58 mm paper: 17, 34 or optional 46 (ESC/POS)
TSP743: Standard: 48, 71 (maximum)

Bar Codes:
TSP654: UPC-A/E, JAN/EAN-8/13, Code 39/93/128, Codabar (NW7), ITF
TSP743: UPC-A/E, JAN/EAN-8/13, Code 39/93/128, Codabar (NW7)

Paper Width:
Adjustable. Standard: 3.15 in (80 mm) Optional: 2.28 in (58 mm)
TSP743 Optional: 3.25 in (82.5 mm)

Paper Thickness:
TSP654: 0.002 in to 0.003 in (0.065 mm to 0.085 mm)
TSP743: 0.003 in to 0.006 in (0.065 mm to 0.150 mm)

Roll Diameter:
3.5 in (90 mm)

Paper Roll Core:
1/2 in to 1.00 in (12 mm to 25.4 mm)

Paper Path:
TSP654: Internal roll
TSP743: Slot in rear or internal roll

Paper Loading:
“Drop-in and print” and external rear feed

Paper Sensors:
TSP654: Near end, paper out, cover open
TSP743: Near end, paper out, top of form

Printer Reliability:
60 million lines MCBF (CRT)

Cutter Reliability:
TSP654: 0.5 million cuts
TSP743: 2 million cuts

Data Buffer:
8K bytes

Logo Store:
TSP654: 2 M bit
TSP743: 4 M bit

Emulation:
Star line mode, ESC/POS™ (TM-U295/TM290)

Drawer Kickout Device Function:
2 drivers

Auto Cutter:
Full and partial cut

Drivers:
Windows® 95/98/2000/NT 4.0, Windows® legacy printer, OPOS, JavaPOS™,
Star Raster Graphics Mode, Linux

Operating Temperature:
41° F to 113° F (5° C to 45° C)

Humidity:
10% to 90% RH (with out condensation)

Overall Dimensions:
TSP654: (W xH x D): 5.59 x 5.16 x 7.83 in
(142 x 131 x 199 mm)
TSP743: (W x H x D): 5.79 x 5.83 x 8.39 in
(147 x 148 x 213 mm)

Appovals:
UL and C-UL listed, FCC, TUV

Warranty:
Three-year limited warranty on parts
One-year limited warranty on print head and cutter

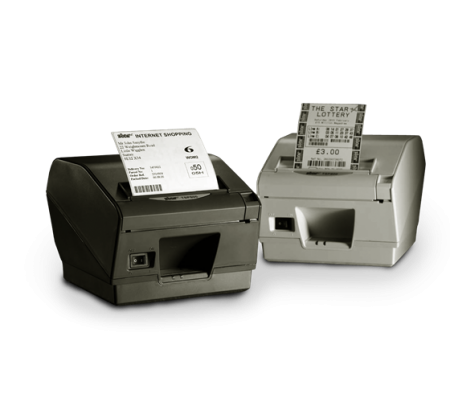

Star® TSP-847 Receipt Thermal Printer

Direct Thermal
Small desktop footprint
Jam-proof patented cutter with full or partial cut
Wide area printing
Zoom raster drive allows letter-sized documents to be printed in 4.4 format
Logo storage capability

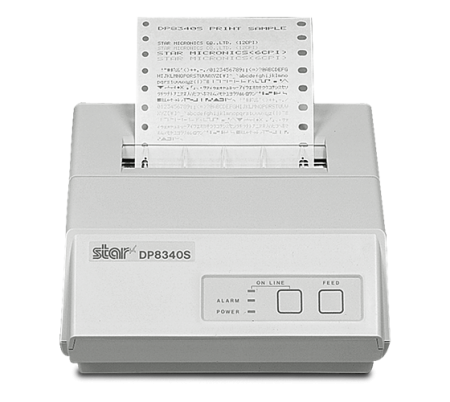

Star® DP8340 Dot Matrix Printer

Separate 115/230 VAC power supply with 12 VDC output
Two-color printing using two-color ribbon
Drawer kickout driver
One line validation
Wide paper

Information

The Star DP8340 dot-matrix printer provides users the option to print in wide format. A receipt up to 4.4 inches wide can be generated with this versatile dot-matrix printer.

Star DP8340 Specifications

Number Of Print Columns:
40 columns, 12 cpi

Print Speed:
Approximately 2 lines/sec

Print Direction:
Bidirectional

Line Spacing:
1/6 in

Paper Feed Method:
Friction Feed or Sprocket Feed

Paper Feed Speed:
Approximately 12 lines/sec

Character Set:
ASCII: 96 characters; International and symbol: 64 characters;
Block graphics: 64 characters

Font Configuration:
Ordinary characters: 5 x 9 dots; Block graphics: 6 x 6 dots

Character Size:
(H x W): 0.09 in x 0.06 in
(2.42 mm x 1.71 mm)

Dot Spacing:
(H x W): 0.01 in x 0.01 in
(0.35 mm x 0.35 mm)

Print Area:
3.31 in (84.3 mm)

Print Buffer:
Approximately 1.5 KB

Serial Interface:
RS-232, 150 to 9,600 band

Power Supply Unit:
115/230 VAC, 12 VDC output

Paper Type:
Ordinary and carbonless copy paper

Paper Width:
4.5 in (114.3 mm)

Roll Diameter:
80 mm outer diameter (Max)

Paper Thickness:
Maximum 0.09 mm

Copy Capabilities:
1 copy plus 1 original: 0.005 in (max 0.13 mm)

Paper End:
Paper should not be attached to the core

Ribbon Color:
Black and red

Ribbon Material:
Nylon (#40 denier)

Ribbon Size:
0.5 in x 20 ft (13 mm x 6 m)

Spool:
Width: 0.5 in (13 mm); Diameter (2 spool): 1.3 in (35 mm)

Operating Temperature:
41° F to 104° F (5° C to 40° C)

Operating Humidity:
10% to 80% RH

Storage Temperature:
-4° F to 158° F ( to 20° C to 70° C)

Storage Humidity:
5% to 95% RH, 104° F (+40° C)

Head Life:
70 million characters

Printer Reliability:
5.0 million lines MCBF (except head life)

Approvals:
UL listed, CSA approved

Warranty:
Three-year limited warranty on parts; one-year limited warranty on print head

SP712 Only

Clamshell design for easy paper loading
Spill-proof and heat-resistant
Swappable interfaces available
Wall mount (option)
External buzzer option

Star SP512/SP542 Specifications

Print Method:
Nine-pin impact dot matrix

Print Speed:
4 lines per second at 40 columns
8 lines per second at 16 columns

Number Of Columns:
42 at 16.9 cpi

Paper Width:
2.25 in/3 in (selectable)

Paper Thickness:
0.002 in to 0.003 in (0.07 to 0.10 mm)

Copy Capabilities:
Copies: original and 2 copies, maximum 0.007 in (0.20 mm)

Roll Diameter:
3.34 in (85 mm)

Paper Roll Core:
0.47 in (12 mm) ID, 0.70 in (18 mm) OD

Paper Loading:
Semi-automatic

Paper Sensors:
Paper out

Cutter Reliability:
0.5 million cuts

Printer Reliability:
70 million characters

Auto Cutter:
SP542: full and partial cut (software controlled)

Interface:
RS-232 serial

Baud Rates:
4800, 9600, 19200, 38400

Drivers:
Windows® 9x/NT/2000, OPOS, JavaPOS™

Emulation:
Star Mode, ESC/POS™

Cash Drawer:
2 drivers

Power Required:
100 to 240 VAC, 50/60 Hz

Overall Dimensions:
(W x D x H): 5.51 x 8.85 x 6.41 in
(140 x 225 x 163 mm)

Storage Temperature:
10% to 90% RH

Operating Temperature:
3° F to 104° F (0° C to 40° C)

Approvals:
UL and C-UL listed, TUV

Warranty:
Three-year limited warranty on parts
One-year limited warranty on print head and cutter

Star Micronics® SP298 Ticket Printer

Top and bottom paper sensing
AutoSide Loading™ for quick and easy document loading
Bidirectional serial impact printer capable of printing graphics using a highly reliable nine-pin printhead
Up to 3.1 lines per second printing with bidirectional check mode
Epson TM-U295/TM290 compatible with same size footprint and interchangeable power supply, easier paper and ribbon loading
Single or up to three-part multicopy ticket printing
Cash drawer driver

Star Micronics SP298 Specifications

Print Speed:
3.1 lines per second (13 mm/sec)

Print Width:
2.5 in (63 mm)

Line Spacing:
1/6 in, N/144 in Star line mode, 1-60 in-ESC/POS™ mode

Print Head:
Nine-Pin

Number Of Columns:
42

Print Direction:
Bidirectional

Paper Width:
3.15 in to 7.17 in (80 mm to 182 mm)

Paper Thickness:
0.004 in to 0.008 in (0.09 mm to 0.2 mm)

Copy Capabilities:
1 original and 2 copies

Paper Sensors:
Top and bottom of form

Ribbon:
Cassette-type purple ribbon. Ribbon life is approximately 2.2 million characters (continuous print)

Printer Reliability:
9 million lines MCBF (CRT)

Print Head Reliability:
70 million characters

Interface:
RS-232 serial interface

Data Buffer:
Star mode: 2KB or 35 bytes ESC/POS mode: 512 bytes or 35 bytes

Emulation:
Star mode, ESC/POS™ (TM-U295/TM290)

Drawer Kickout Device Function:
2 drivers

Drivers:
Windows® 95/98/2000/NT 4.0, OPOS, JavaPOS™

Operating Temperature:
41° F to 104° F (5° C to 40° C)

Humidity:
10% to 80% RH

Overall Dimensions:
(W x H x D): 7.09 x 7.48 x 7.48 in
(180 x 138 x 190 mm)

Approvals:
UL and C-UL listed, TUV

Warranty:
Three-year limited warranty on parts
One-year limited warranty on print head

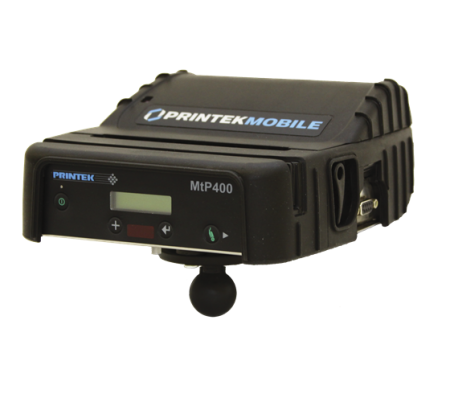

RICE LAKE Printek MtP400si Direct Thermal Printer

Designed for superior resistance to impact and harsh chemicals
IP54 rated for water and dust resistance
Rugged, screw down connector for power and data
Simple drop-in paper loading
Direct thermal printing
Wide input voltage range and superior circuit protection
Onboard weighing, forklift applications
Data/power cable and one roll of paper supplied with printer

Printek MtP400si Specifications

Print Method:
Direct thermal

Resolution:
203 dpi (8 dots per mm)

Print Speed:
Up to 3.3 ips

Width:
Up to 4.1 in (10.41 cm)

Fonts:
A wide range of font types and sizes, from 6 cpi to 34 cpi depending on emulation chosen, plus scaling

International Characters:
An expanding catalog available for download. Bar Codes: 39, 128, Intlv 2 of 5, EAN08 and 13, PDF-417 and UPC, depending on emulation chosen.

Connectivity:
RS-232

Software:
Drivers and Utilities: Drivers for WIN 98, 2000, XP. compatible with Windows® CE/Pocket PC and Palm OS print utilities and SDK’s.
Printer Setup program provides convenient configuration via a Windows interface from any computer

Emulations:
Emulates many popular printer brands and languages including O’Neil, Zebra CPCL and ZPL, Extech, IPL, MPL, E-Sim and Printek Mt3. Can be upgraded as new emulations become available

Ingress Protection Rating:
IP54

Print Media:
Paper Type: Direct thermal roll
Roll Size: Maximum roll diameter 2.625 in (6.7 cm) allows roll widths from 3in to 4.125 in (7.6 to 10.5 cm)
Roll Capacity: Approximately 171 ft (52.1 cm) max.
Core Size: 0.75 in (1.9 cm)

Electronics/Power:
Ruggedized screw down-type DB-9 connector for power and I/O.
DC Input: 8 to 32 VDC
Overvoltage Protection: 80 VDC for 1 hour. Failsafe to 180 VDC.
I/O Short Circuit: Tolerant of shorts to ground or DC input.

Dimensions:
(L x W x H): 7.7 x 6.6 x 3.1 in
(19.56 x 16.76 x 7.87 cm)

Weight:
2.0 lb (0.90 kg)

Memory:
2 MB Flash, 1 MB SRAM. Standard memory supports large and graphic intensive print jobs

Operating Temperature:
-40° F to 185° F (-40° C to 85° C)

Operating Humidity:
10% to 90% RH (non-condensing)
Rated IP54 per IEC529
Chemical resistant case per SAEJ1455

Operator Controls And Indicators:
4 illuminated icons for general fault, wireless connection, MCR ready and battery status.
2 line LCD for system alerts and messages, configuration setup and battery charge
Buttons for power, paper feed and setup menu.
Sensors for paper out, black mark detection, and door open.

Durability And Reliability:
Survives multiple 4 foot drops to concrete (each face) and conforms to IEC 68-2

Vibration Resistance:
9.8 frms 24 to 2000 Hz
MTBF: 10,000 hours in normal use

Approvals:
FCC Class B, CE mark, UL listed AC adapters, E-mark on In-Vehicle adapters

Warranty:
One-year printer warranty on the entire printer—case and print head included

Search results

Information

Load Cell Spacers Dimensions:

Information

Information

T-Grip Molding Dimensions:

Information

T-Strip Molding Dimensions:

Information

Grounding Strap Dimensions:

Information

Rod End Ball Joints Dimensions

Clevis Mount Assemblies Dimensions

Information

Tripp-Lite USB to Serial Converters Specifications

Information

ISOBAR Specifications

Information

Tripp-Lite DNET1 Specifications

Information

Eaton 3S/5S Specifications

Information

Tripp-Lite PV Series Specifications

Information

Sola S1K/S3K Specifications

Information

Information

LCP-1 DC Transient Protection Specifications

Information

ISOBLOK Specifications

Information

EL226 Specifications

EL226AC Transient Protection Dimensions

Motorola DS457 Specifications

Datalogic PowerScan PM9300 Series Specifications

Information

Information

Datamax-O’Neil® DMXREW1 Specifications

Information

Zebra QLn420 Mobile Printer Specifications

Zebra ZD 410/TLP 2824 Plus Specifications

Star TSP654II/TSP743 II Specifications

Information

Star DP8340 Specifications

Star SP512/SP542 Specifications

Star Micronics SP298 Specifications

Printek MtP400si Specifications
