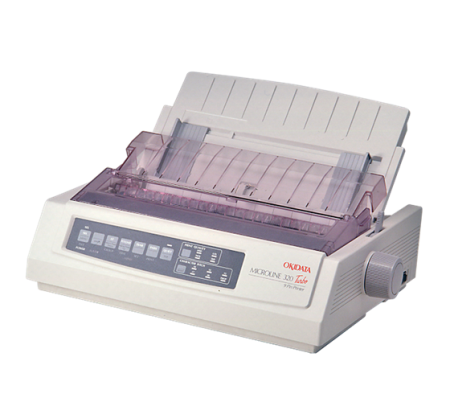

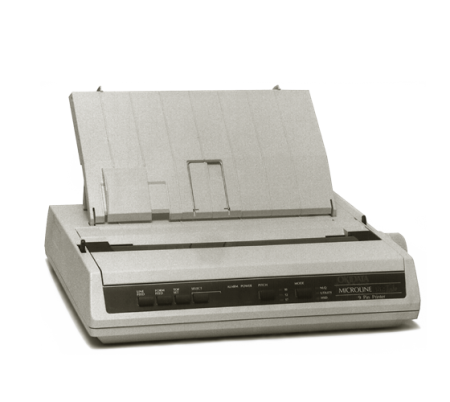

OKIDATA 320-390-420 Turbo

Vertical tabs
Long-lasting, self-inking ribbon cartridge
Bit image graphics for plotting charts, graphs and drawings
Full ASCII character set
Friction and adjustable pin feed paper handling

**Okidata 320/420 Turbo*:**

Nine-pin, long-life print head (parallel input)
Centronics®-compatible parallel interface
Near letter-quality printing at 63 characters per second
80 columns with standard characters, 160 columns with condensed characters
Front access panel for quick and easy control of type size, print quality and other frequently used printer functions

Okidata 390 Turbo:

24-pin, long-life print head
Supports Windows® 95/98
Superior, professional quality printer
Auto-tear accurately positions continuous forms for a clean tear at the perforation
Three scaleable fonts

* Use with CBI

Okidata 320/390/420 Turbo Specifications

Print Method:
Okidata 320/420: 9-Pin (0.34 mm dia.) serial impact dot matrix
Okidata 390: 24-Pin (0.20 mm dia.) serial impact dot matrix

Graphics Resolution:
Okidata 320/420: 240 (H) x 216 (V) DPI maximum (Epson®/IBM®)
Okidata 390: 360 (H) x 360 (V) DPI maximum (Epson/IBM AGM)

Print Speed** (cps):
Okidata 320: NLQ: 75; Utility: 300;
High Speed Draft: 390;
Super Speed Draft: 435
Okidata 390: LQ: 105; Utility: 315;
Super Speed Draft: 390 (15 cpi)
Okidata 420: NLQ95;
High Speed Draft: 5p 510; Utility: 570, Super 570

Feed Rate:
5.0 ips

Emulations:
Okidata 320: Epson EX-PPR II and OKI® Microline®
Okidata 390: Epson ESC/P2, IBM ProPrinter® and IBM AGM
Okidata 420: Epson Fx IMB Pro Point Micro

Interface:
Okidata 320/390/420: IEEE 1284 bidirectional parallel; Windows® 95 plug and play compatible, USB
Okidata 390: Centronics® and IEEE 1284 bidirectional parallel

Compatibility:
Windows® XP, 2000, 98/95

Receive Buffer:
Okidata 320: 28K
Okidata 390: 23K
Okidata420: 128K

Code Pages:
Standard ASCII; Epson character set I and II; IBM character set I, I and All; Code Page 850, 860, 863, 865, 437; BRASCII and ABICOMP

Resident Fonts:
Okidata 390: LQ: Courier, Letter Gothic, Orator, Prestige, Roman and Swiss/Bold; Utility: Gothic

Scaleable Fonts:
Okidata 320/420: Courier, Gothic (22-216 pt. in one pt. increments)
Okidata 390: Courier, Roman and Swiss™ (8-64 pt. in one pt. increments)

Bar Codes:
Code 39, UPC A, UPC E, EAN 8, EAN 13, Interleaved 2 of 5, Code 128 (A, B, C), PostNet™

Paper Input:
Single/multi-part, continuous, cut sheet, envelopes, card stock, labels
Bottom feed with pull tractor option

Number Of Copies:
Okidata 320: Six
Okidata 390: Four
Okidata 420: Six

Tractor:
3.5 to 10.5 in wide (88.9-266.7 mm wide), rear push with zero tear and paper park (optional)

Paper Thickness:
Rear feed: 0.014 in (0.35 mm) maximum;
Bottom feed***: 0.017 in (0.43 mm) maximum, expandable to 0.01 in (.78 mm)

Paper Path:
Bottom, rear or top

Paper Weight:
Cut sheet 16 to 24 lb (7.2 to 10.8 kg), Continuous 16 to 20 lb (7.2 to 9.1 kg)

Electrical:
115 VAC, 230 VAC

Power Consumption:
Okidata 320: Operating: 100 W
Okidata 390: Operating: 43 W Idle: 10 W
Okidata 420: 20,000 hours

Reliability (MTBF):
10,000 hours (25% duty cycle, 35% page density)

Print Head Life:
200 million characters

Ribbon Type:
Black cartridge (2 million characters nominal life)

Operating Temperature:
40° F to 104° F (4° C to 40° C) at 25% to 80% relative humidity

Overall Size:
Okidata 320 and 390: (W x D x H): 15.7 x 13.6 x 4.6 in
(398.8 x 345.4 x 116.8 mm)
Okidata 420: 15.7 x 13.6 x 6.0 in

Est. Ship Weight:
Okidata 320: 16 lb (7.2 kg)
Okidata 390: 15 lb (6.8 kg)
Okidata 420: 17 lb (7.7 kg)

Warranty:
320/390: One-year limited warranty (includes print head)
420: Three-year limited warranty

** Print speeds apply to all pitches (10, 12, 17.1, and 20 cpi)
*** Requires optional pull tractor (part #41224)

OKIDATA 186 Turbo

Vertical tabs
Long-lasting, self-inking ribbon cartridge
Bit image graphics for plotting charts, graphs and drawings
Full ASCII character set
Friction and adjustable pin feed paper handling
Nine-pin, long-life print head
RS-232 interface or USB
Near letter-quality printing at 50 characters per second
Superscripts, subscripts and underlining
Bottom, rear or top feed

Okidata 186 Turbo Specifications

Print Method:
Nine-Pin (0.34 mm dia.) serial impact dot matrix

Graphics Resolution:
240 x 216 maximum

Print Speed* (CPS):
NLQ: 62; Utility: 250; High Speed Draft: 333; Super Speed Draft: 375

Feed Rate:
2.0 ips

Emulations:
IBM® 2480 Epson E6C/P or OKI® Microline®

Interface:
USB or RS-232

Compatibility:
186/Windows® XP, 2000, 98/95

Receive Buffer:
One line buffer

Paper Input:
Cut sheet, 7.2 in to 8.5 in W
(182.9 mm to 215.9 mm W)
Bottom feed with pull tractor option

Number Of Copies:
Five copies

Pin Feed:
Continuous, 9.5 in to 10.5 in wide
(241.3 mm to 266.7 mm wide)

Paper Thickness:
0.014 in (0.35 mm) maximum

Paper Path:
Bottom, rear or top

Paper Weight:
Cut sheet: 16 lb to 24 lb (7.2 kg to 10.8 kg),
Continuous: 16 lb to 20 lb (7.2 kg to 9.1 kg)

Electrical:
120 VAC: ±10%; 220/240 VAC: ±10%

Power Consumption:
Operating: 35 W
Idle: 7 W

Reliability (MTBF):
70,000 hours

Print Head Life:
200 million characters

Ribbon Type:
Black cartridge (2 million characters nominal life)

Operating Temperature:
40° F to 104° F (4° C to 40° C) at 25% to 80% relative humidity

Overall Size:
(W x D x H): 14.2 x 10.8 x 3.2 in
(360.7 x 274.3 x 81.3 mm)

Est. Ship Weight:
10 lb (4.5 kg)

Warranty:
One-year limited warranty (includes print head)

* Print speeds apply to all pitches (10, 12, 17.1, and 20 cpi)
** Requires optional pull tractor (part #41224)

GoDEX Direct Thermal Printers

Standard Features

Auto language emulations GEPL, GZPL
Free GoLabel design software for EZPL
203 DPI (8 dot/mm)
Drop-in media loading
USB or RS-232 interface
Plain, gap label, black, mark or fanfold label
Label length detection
Direct thermal
Model G500- direct thermal/thermal transfer
32 Bit CPU
Serrated tear bar

Specifications

Print Speed:
DT2x/DT4x: up to 7 ips
G500: 5 ips

Print Length:
Minimum: 0.16 in
Maximum: 68 in

Print Width:
DT2x: 2.12 in
DT4x/G500: 4.25 in

Media:
Continuous form, gap labeling, black mark sensing
and punched sensing
Label roll O.D. max: 5.0 in

Real-time Clock:
DT2x/DT4x: standard

Core:
1 in, 1.5 in
Thickness: 0.06mm to 0.20mm

Ribbon (G500):
Core: 1 in
Length: 300m
Max ribbon roll O.D.: 2.67 in
Wide: 1.18 in to 4.33 in

Printer Language:
GZPL or GEPL, EZ PL auto switch

Resident Fonts:
11 resident alphanumeric fonts (included OCR A and B)
are expandable 8 times horizontally and vertically. All
bit mapped fonts in 8 orientations.

Bar Codes:
Code 39, Code 93, Code 128 (subset A, B, C,) UCC/
EAN – 128 K-Mart, UCC/EAN – 128, UPC A/E (add on
2 and 5,) 2 of 5, EAN 8/13 (add on 2 and 5.) Codabar,
Post Net, EAN 128, DUN 14, MaxiCode, HIBC, Plessey,
Random Weight, Telepen, FIM, China Postal Code, RPS
128, PDF 417, Datamatrix code, QR Code

Dimensions:
DT2x (L x H x W): 8.58 x 6.77 x 3.94 in (218 x 172 x
100mm)
DT4x (L x H x W): 8.58 x 6.53 x 6.61 in (218 x 166 x
168mm)
G500 (L x H x W): 11.2 x 6.8 x 8.9 in (285 x 171 x
226mm)

Interfaces:
Baud rate 4800 to 115200; DB9
USB port U2.0 (B-type)
Ethernet (RJ-45)

Memory:
8MB flash – DT2x, DT4x and G500

Power:
Auto switching 100/240 VAC 50/60Hz

Environment:
Operation: 41° F to 104° F (5°C to 40°C)
Storage: -4° F to 122° F (-20°C to 50°C)

Humidity:
Operation: 30% to 85% non-condensing, free air
Storage: 10% to 90% non-condensing, free air

Approvals:
CE (EMC), FCC Class A, CB, CUL, CCC

Warranty:
Two-year limited warranty

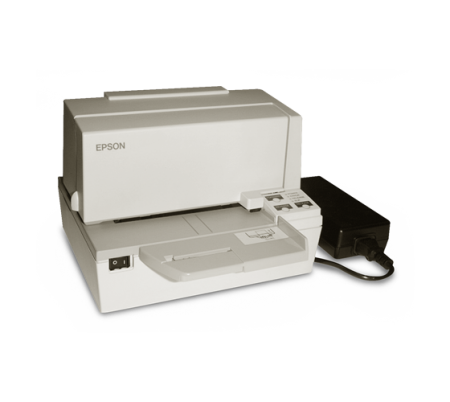

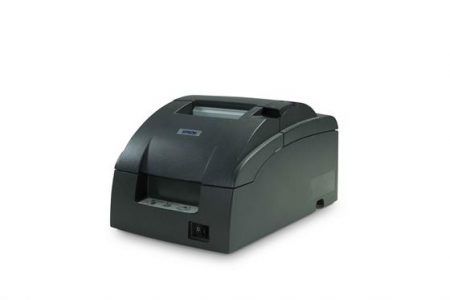

EPSON TM-U590 Ticket Printer

High-speed 2.8 lines per second printing for 88 columns of print; 4.9 lines per second printing for 40 columns
Single copy and up to five-part
Wide slip capability of A4 size documents
Functions in slave capacity, printing information sent via RS-232
5.2 in wide print area

EPSON TM-U590 Specifications

Print Method:
Nine-pin, serial impact dot matrix

Font:
7 x 9 and 9 x 9

Column Capacity:
88/66 columns

Character Size:
(W x H): 0.05 in x 0.12 in/0.06 in x 0.12 in
(1.3 mm x 3.1 mm/1.6 mm x 3.1 mm)

Character Set:
Alphanumeric: 95
International: 32
Graphic: 128 x 10

Characters Per Inch:
16.7 CPI/12.5 CPI

Serial Interfaces:
RS-232/Bidirectional parallel/RS-485

Data Buffer:
4K/69 bytes

Paper Dimensions:
(W x L): 2.76 x 2.76 in/8.26 x 11.69 in
(70 x 70 mm/210 x 297 mm)

Paper Thickness:
0.003 in to 0.014 in (0.09 mm to 0.36 mm)

Copy Capabilities:
One original and four copies

Power:
24 VDC ±10%

Power Consumption:
Approx. 43 W
Drawer Kickout Device Function:
Two drives

Ribbon:
ERC-31 (purple)

Overall Dimensions:
(W x D x H): 9.92 x 10.47 x 7.28 in
(252 x 266 x 185 mm)

Approvals:
CE marked, FCC class A, VCC #1,
UL and C-UL listed, TUV

Warranty:
One-year limited warranty (includes print head)

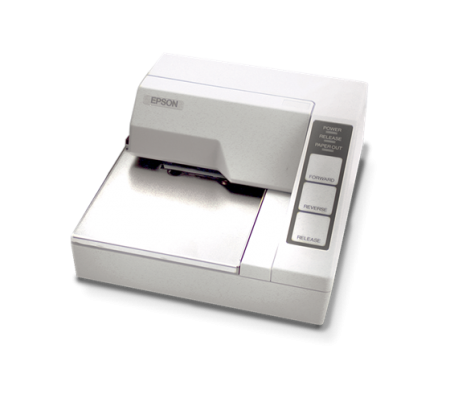

EPSON TM-U295 Ticket Printer

High-speed 1.9 to 2.3 lines per second printing
Single copy or up to four-part multicopy ticket printing
Functions in slave capacity, printing information sent via RS-232

EPSON TM-U295 Specifications

Print Speed:
1.9 to 2.3 lines per second (5 x 7 character, 3 dot line spacing)

Column Capacity:
35/42 columns

Characters Per Line:
35 standard font

Print Area:
2.59 in W (65.8 mm W)

Character Formation:
5 x 7 and 7 x 7 dot matrix

Character Height:
0.11 standard font

Character Set:
Full 96-character ASCII; with software control,
32 international characters,
128 x 2 graphic characters

Line Spacing:
0.16 in (4.06 mm) software programmable in 1/60 in units

Print Head Life:
Approximately 100 million strokes/pin

Form Thickness:
Single-ply: 0.003 in to 0.009 in (0.08 mm to 0.23 mm)
Copy paper: 0.003 in to 0.014 in (0.08 mm to 0.36 mm)

Ribbon:
Cassette-type purple ribbon. Ribbon life is approximately 1.5 million characters (continuous prints). Black ink also available.

Serial Interfaces:
RS-232 compatible (25-Pin D-sub)

Baud Rates:
1200, 2400, 4800, 9600, selectable

Parity:
7 or 8 bits, none, even or odd

Stop Bits:
1 or more

Handshaking:
DTR/DSR or XON/XOFF control selectable

Overall Dimensions:
(W x D x H): 7.08 x 7.49 x 3.99 in
(180 x 190.5 x 101.5 mm)

Approvals:
UL listed, CSA certified, CE marked

Warranty:
One-year limited warranty (includes print head)

EPSON TM-U220 Roll-Tape Printer

Nine-pin dot matrix print head
High-speed 4.7 to 6.0 lines per second printing
Drop-in paper set and auto paper loading
Automatically transmits changes in printer status
RS-232
Optional connect-it cartridges for parallel, USB, 10 Base-T
Uses MI88D mechanism

EPSON TM-U220 Specifications

Print Speed:
Approximately 4.7 lines per second

Column Capacity:
40/42 or 33/35 columns

Characters Per Line:
40 characters

Print Area:
3 in (76.2 mm) W

Character Formation:
7 x 9 and 9 x 9 dot matrix

Character Height:
0.12 standard font

Character Set:
95 alphanumeric characters,
37 international characters,
128 x 12 graphic characters

Line Spacing:
0.17 in (4.32 mm)

Print Head Life:
Approximately 100 million strokes/pin

Form Thickness:
0.002 in to 0.003 in (0.06 to 0.085 mm)

Ribbon:
Cassette-type purple ribbon. Ribbon life is approximately 1.5 million characters (continuous prints). Black ink also available.

Serial Interfaces:
RS-232 compatible (25-Pin D-sub) or USB model

Baud Rates:
4800, 9600

Parity:
7 or 8 bits, none, even or odd

Operating Temperature:
32° F to 122° F (0° C to 50° C)

Stop Bits:
1 or more

Handshaking:
DTR/DSR or XON/XOFF control selectable

Overall Dimensions:
Type A: (W x D x H): 6.3 x 11.3 x 6.2 in
(160 x 286 x 157.5 mm)
Type D: ( W x D x H): 6.3 x 9.7 x 5.4 in
(160 x 248 x 138.5 mm)

Approvals:
UL listed, CSA-certified, CE marked

Warranty:
Two-year limited warranty (includes print head)

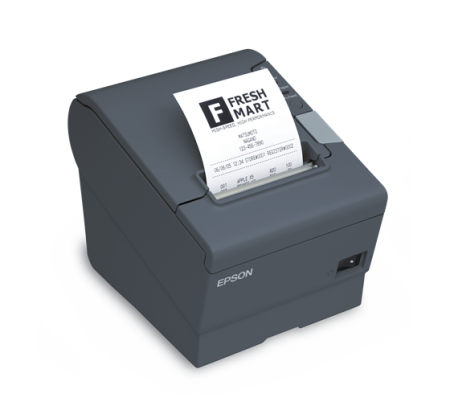

EPSON TM-T88V Receipt Printer

High-speed printing of both text and graphics (up to 300 mm/second)
True grayscale image printing
Best-in-class reliability
Convenient drop-in paper loading, auto cutter and status LEDs
ENERGY STAR® qualified
Accommodates 58 mm or 80 mm paper roll
Paper saving print features
Improved cover protects from dust and debris
OS support for Microsoft® Windows® 7, Vista, XP, 2000; Mac OS X v10.4, v10.5, v10.6 (Power PC/Intel Processor) and Linux

EPSON TM-T88V Specifications

Interface:
Built-in USB and serial interface; built-in USB and Ethernet: or built-in USB and Wireless LAN

Data Buffer:
Receive buffer: Selectable as 45 bytes or 4 KB using the DIP switch

Paper Dimensions:
80 mm: 3.13 in x 3.27 in diameter or 58mm: 2.26 in x 3.27 in diameter

Weight:
1.6 kg (3.53 lb)

Color:
Gray

Paper Thickness:
55-80 µm

Print Speed:
300 mm/s {11.81 inch/s}

Safety Standards:
EMI: FCC/ICES-003 Class A
Safety standards: UL60950-1/CSA C22.2 No.60950-1

Power:
24 VDC ±7%

Power Consumption:
Approx. 1.8 A (mean)

Temperature:
Operating : 31° F to 113° F (5° C to 45° C)
Storage: 14OF to 122° F (-10° C to 50° C)

Reliability:
MTBF: 360,000 hours
MCBF: 70 million lines

Overall Dimensions:
(W x D x H): 5.71 x 7.68 x 5.83 in
(145 x 195 x 148 mm)

Warranty:
One-year warranty

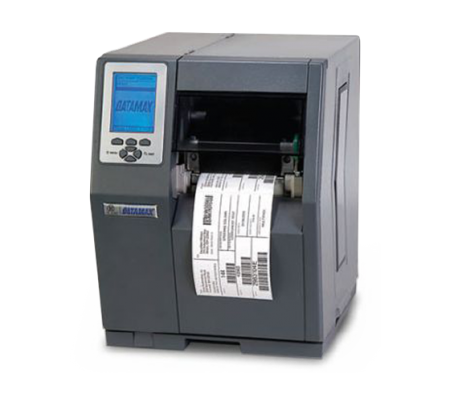

HONEYWELL H-4212/H-4310 Thermal Transfer Printer

Peel and present
Thermal transfer
Nine bitmapped fonts
Scalable engine
Revolving media hub
16 MB RAM (optional)
Media window
8 MB flash RAM
Options easily field-installed
Honeywell CD-ROM (contains Windows® print drivers and manuals)
MCL Enabled
Optional R series RFID and RFID ready printers
Real-time clock
Secure digital input (SDID) card slot-SDID flash memory card

Honeywell H-4212 / H-4310 Specifications

Print Speed:
H-4310(x): 2 in to 10 in per second
H-4212(x): 2 in to 12 in per second (50.8 to 304.8 mm) in 0.5 in (0.01 mm)
programmable increments

Resolution:
H-4212x-200 dpi
H-4310x-300 dpi

Maximum Print Width/Length:
Width: 4.10 in (H-4212x) 4.16 in (H-4310x)
Length: 0.25 in to 99 in (6 mm to 2475 mm) 0.75 in (19 mm) minimum print length with optional present sensor

Media Width:
1 in to 4.65 in (25 mm to 118 mm)

Supply Roll:
8 in (203 mm) maximum diameter on 3 in (76 mm) core. Fan-fold stock accepted from rear and bottom of printer

Ribbons:
Industry standard ribbon widths; 1 in (25 mm) ribbon core, 1,968 ft (600 m) in length

MCL:
Macro Command Language allows printer to control the printing application

Dimensions:
H-4212: (H x W x D): 13.0 x 12.6 x 18.9 in
H-4310: (H x W x D): 16.37 x 12.51 x 18.83 in
RFID printers (Contact Rice Lake)
CABINET: Metal construction, clear side window

Bar Codes:
Code 3 of 9, Interleaved 2 of 5, Code 128,
Codabar, UPC-A, UPC-E, UPC 2 and 5 digit
addendums, EAN-8, EAN-13, EAN 2 and 5 digit
addendums, Code 93, Plessey, UCC/EAN
Code 128, Postnet, PDF 417, UPS MaxiCode,
Datamatrix, FIM,Telepen, HIBC, Aztec, TLC39,
QR Code, PDF417, USD-8, Micro PDF41, 7,
RSS, USPS-4

Graphics Support:
.PCX, .BMP and .IMG files

Memory:
8 MB Flash Memory; 16 MB DRAM memory

Interfaces:
Centronics® parallel port (IEEE 1284 compliant), RS232/422 at 2400 to 38400 BPS
Ethernet, USB

Power Source:
Auto-sensing 115, 230 VAC 50/60 Hz; specify appropriate power cord when ordering

Operating Temperature:
32° F to 100° F (0° C to 38° C)

Approvals:
UL listed, CSA certified, CE marked, FCC Class A emissions standard, TUV-GS safety standards, RoHS and WEE compliant

Weight:
47 lb

Warranty:
One-year limited warranty on parts.
One-year or 1 million linear inches on original print head.
90 days on replacement print head.

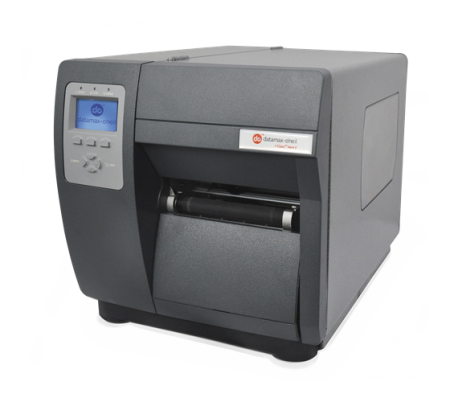

HONEYWELL I-4212E Mark II Bar Code Printer

203 dpi (8 dots/mm) print resolution
Easy-to-read liquid crystal display (LCD)
Scaleable engine
3 in and 1.5 in (76.2 mm and 38.1 mm) revolving media hub
32 MB/64 MB memory
Media window
Honeywell CD-ROM (contains Windows® print drivers and manuals)
NETira software

Honeywell I-4212e Mark II Specifications

Print Speed:
12 in per second (305 mm)

Resolution:
203 DPI (8 dots/mm)

Maximum Print Width:
4.094 in (104 mm)

Media Width:
1 in to 4.65 in (25 to 118 mm)

Print Length:
0.25 in to 99 in (6 mm to 2,475 mm) .75 in (19 mm) minimum print length with optional present sensor

Supply Roll:
8 in (203 mm) maximum diameter on 1.5 in to 3 in (38 mm to 76 mm) core.
Fan-fold stock accepted from rear of printer

Revolving Media Hubs:
Standard in 1.5 in and 3 in; optional 40 mm

Ribbons:
Industry standard ribbon widths; 1 in (25 mm) ribbon core, 1,968 ft (600 m) in length
Auto-sensing option

Bar Codes:
Code 39, Interleaved 2 of 5, Code 128 (subsets A,B and C), Codabar, LOGMARS, UPC-A, UPC-E, UPC 2 and 5 digit addendums, EAN-8, EAN-13, EAN 2 and 5 digit addendums, UPC random weight, Code 93, MSI Plessey, Universal Shipping Container Symbology, UCC/EAN Code 128, QR Code, Postnet, Code 128 MOD 43, PDF 417, Micro PDF, UPS MaxiCode (mode 2 and 3), Datamatrix, Telepen, Aztec Code

Graphics Support:
.PCX, .BMP and .IMG files

Dimensions:
(H x W x D): 12.7 x 12.62 x 18.6 in
(322.6 x 320.5 x 472.4 mm)

Interfaces:
Centronics® parallel port (IEEE 1284 compliant), RS-232 at 300 to 38,400 BPS, USB, optional Ethernet

Power Source:
Auto-sensing 90-264 VAC at 47-63 Hz; specify appropriate power cord
when ordering

Approvals:
UL listed, CSA certified, CE marked, RoHS and WEE compliant

Warranty:
One-year limited warranty on parts.
One-year or 1 million linear inches on original print head
90 days on replacement print head

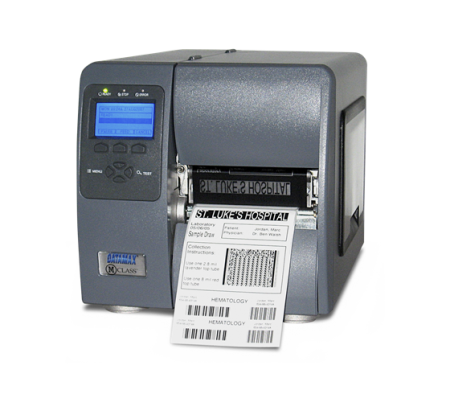

HONEYWELL M-4206/M-4210 Mark II Industrial Printer

203 dpi (8 dots/mm) print resolution (M4308, 300 dpi)
Lightweight die-cast aluminum frame
Supplies loading diagram embossed into the frame
Collapsible ribbon hub for loading and unloading of ribbons
Media window
Scaleable font engine
USB, serial and parallel communications
Reverse fields/mirror image (fonts/graphics can be printed as a normal or reverse image)
Real-time clock (M-4210)
Support CD-ROM (contains DMX EM conf. tool, Windows® print drivers an manuals)
Line mode
LCD Graphical Display

Honeywell M-4206 Mark II/M-4210 Mark II Specifications

Print Speed:
M-4206 Mark II: 2 in to 6 in per second
(51 mm to 152 mm)
M-4210 Mark II: 2 in to 10 in per second
(51 mm to 152 mm)
M4308: 2 in to 8 in per second
(51 mm to 203 mm)

Supply Roll Capacity:
8 in (203 mm) O D on 1.5 in to 3.0 in
(38 mm to 76.2 mm) cores
Fanfold stock accepted from rear and bottom of printer

Bar Code Modulus:
5 mil to 55 mil “X” dimension in picket fence or ladder orientations

Media Width:
0.75 in to 4.65 in (17 mm to 118 mm)

Media Type:
Roll fed or fan-fold materials, die-cut or continuous labels; perforated or continuous tag/ticket stock

Print Length:
0.25 in to 99 in (6 mm to 2,475 mm)

Media Thickness:
0.0025 in to .01 in (.0635 mm to .254 mm)

Ribbons:
Industry standard ribbon widths; 1 in (25 mm) ribbon core, 1,476 ft (450 m) in length

Bar Codes:
Code 3 of 9, UPC-A, UPC-E, Interleaved
2 of 5, Code 128, EAN-8, EAN-13, HIBC,
Codabar, Plessey, UPC 2 and 5 digit
addendums, Code 93, Postnet, UCC/EAN
Code 128, Telepen, UPS MaxiCode, FIM,
PDF417, USD-8, Datamatrix, QR Code, Aztec,
TLC 39, Micro PDF417, RSS

Graphics Supported:
.PCX, .BMP and .IMG files

Memory:
M4206: 8 MB RAM (8 MB FLASH), 1 MB user available
M4210: 16 MB RAM (8 MB FLASH), 3 MB user available

Construction:
Metal

Interfaces:
USB, Centronics® parallel port, RS-232 at 600 to 38,400 BPS

Power Source:
Auto-sensing 90 to 132 or 180 to 264 VAC at 47 to 63 Hz; specify appropriate power supply and cord when ordering

Operating Temperature:
40° F to 95° F (4° C to 35° C

Overall Dimensions:
(H x W x D): 10.21 x 10.10 x 18.19 in
(259 x 257 x 462 mm)

Approvals:
UL listed, CSA certified, CE marked, TUV-GS safety standards, FCC Class A
emissions, RoHS and WEE compliant

Processor:
M-4206 Mark II Dragonball, 100 MHz
M-4210 Mark II Dragonball, 150 MHz

Weight:
27 lb

Warranty:
One-year limited warranty.
One-year or 1 million linear inches on original print head.
90 days on replacement print head

Honeywell M-4206 Mark II/M-4210 Mark II Options

R-series RFID HF and UHF M210 Mark II

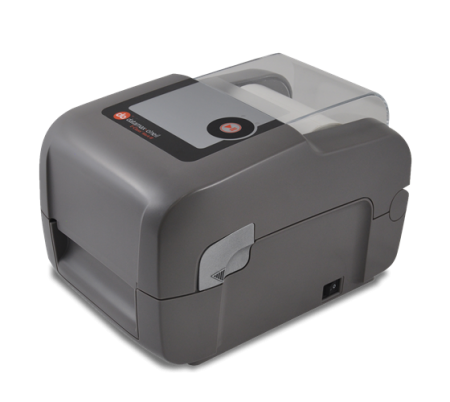

HONEYWELL E-Class III Bar Code Desktop Printer

203 dpi (8 dots/mm) print resolution
Drop-in media loading
USB, RS-232 or parallel
Gap label, black mark plain or fanfold label
Label length detection
Direct thermal and thermal transfer models
Rugged construction to double wall and concentric hinges
Media viewing window
Field-installable options
NETira software

Honeywell E-Class III Specifications

Print Speed:
Basic: 4 inches per second
Advanced: 5 Inches per second (IPS) (127 mm/s)

Print Length Range:
0.375 to 99 in (9.5 to 2,514 mm)

Print Width:
4.25 in maximum

Media Types:
Label Roll OD: Max 5.0 in
Core: 1 in
Fan-fold, die-cut or continuous labels, perforated or continuous tag/ticket stock
Width: 0.75 to 4.4 in
Thickness: 0.0025 to 0.01 in
Sensing: Basic-fixed position
Advanced: Positional adjustable sensors capable of gap between labels, black bar on back, and notch or hole sensing

Printer language:
DPL, PL-Z or PL-E emulation

Ribbon:
Coated side in or coated side out (CSI/CSO)
Width range 1.0-4.3 in (25 to 109 mm)
Core: 0.5-1.0 in (13 to 25 mm)

Resident Fonts:
10 alphanumeric fonts from 0.08 to 0.25 in including OCR-A, OCR-B, CG
Triumvirate smooth font from AGFA

Bar Codes:
Linear (Code 3 of 9, Code 93, Code 128), UCC/EAN-128, UPC E, EAN 8/13,
Interleaved 2 or 5, Codabar, Post Net, HIBC, UPC 2 and 5 Addendums, Plessey and Telepen

2-D Symbologies:
MaxiCode, PDF417, Datamatrix, QR Code, USD-8, Aztec, TLC 39, Micro PDF417

Dimensions:
(W x L x H): 8.01 x 7.36 x 11.1 in
(203.5 x 187 x 282 mm)

Memory:
64MB Flash/16 MB DRAM

Interfaces:
Baud rate: up to 38,400 BPS
Standard: USB and RS-232 (DB-9)
Advanced model mini-parallel centronics also

Power:
Auto switching 100/240 VAC, 50/60 Hz, U.S. Power Cord

Environment:
Operation: 40° F to 95° F (4° C to 35° C)

Operating Temperature:
40° F to 95° F (4° C to 35° C)

Weight:
5.2 lb (2.4 kg)

Warranty:
One-year limited warranty

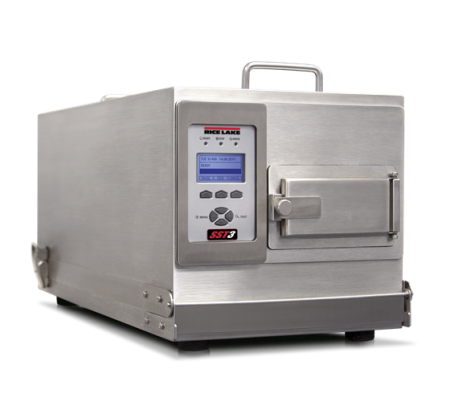

RICE LAKE SURVIVOR® SST3® Washdown Printer

IP69K rating
Washdown 304 stainless steel enclosure
Electronics protected from splashes
Direct thermal
203 dpi printhead (optional 300 dpi model)
Label length detection
Real-time clock
USB, serial or parallel communications
Line mode

Information

As an IP69K rated printer, the SST3 features a stainless steel enclosure that completely seals out moisture and dust. For printing in meat, poultry, food and chemical plants, the SST3 industrial label printer is the perfect choice for durability and performance.

Rice Lake SURVIVOR SST3 Specifications

Print Speed:
2 in to 10 in per second
(51 mm to 152 mm)

Supply Roll Capacity:
8 in (203 mm) O D on 1.5 in to 3.0 in
(38 mm to 76.2 mm) cores.

Bar Code Modulus:
5 mil to 55 mil “X” dimension in picket fence or ladder orientations

Media Width:
0.75 in to 4.65 in (17 mm to 118 mm)

Media Type:
Roll fed, die-cut or continuous labels;
perforated or continuous tag/ticket stock

Print Length:
0.25 in to 99 in (6 mm to 2475 mm)

Media Thickness:
0.0025 in to 0.0100 in (0.0635 mm to 0.254 mm)

Ribbons (Optional):
Industry standard ribbon widths:
1 in (25 mm) ribbon core, 1,476 ft (450 m) in length

Bar Codes:
Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5-digit addendums, Code 93, Postnet, UCC/Ean Code 128, Telepen, UPS MaxiCode, FIM, PDF417, USD-8, Datamatrix, QR Code, Aztec, TLC 39, Micro PDF417, RSS

Graphics Support:
PCX, BMP and IMG files

Memory:
16 MB RAM (8 MB FLASH)
3 MB user available

Rating/Material:
IP69K/Stainless Steel 304

Interfaces:
USB, Centronics® Parallel port, RS-232 at 600 to 38,400 BPS

Power Source:
Auto-sensing 103.5 to 126.50 or 207 to 253 VAC at 47 to 63 Hz; US or European power cord

Operating Temperature:
40° F to 95° F (4° C to 35° C)

Dimensions:
(H x W x L):27 x 14 x 13.6 in
(686.8 x 355.6 x 345.4 mm)

Approvals:
UL listed, CE marked

Processor:
Dragon ball, 150 MHz

Warranty:
One-year limited warranty
One-year or 1-million linear inches on original print head. 90 days on replacement print head

Rice Lake SURVIVOR SST3 Options

300 dpi print head
Wireless or wired ethernet
Heater
Thermal transfer

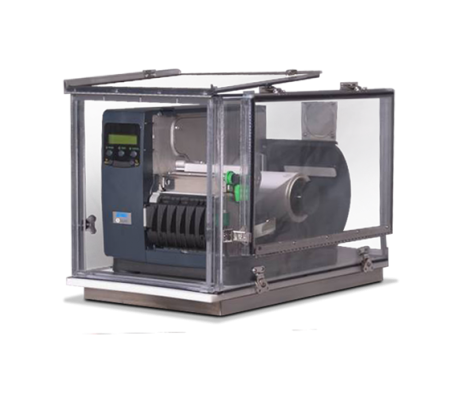

RICE LAKE POLY GUARD Clear Printer Enclosure

Designed for use in meat and food processing plants
Cover separates from bottom
In washdown position, stainless latches hold bottom and cover together
Power and data cable feed through sealed notch in back of enclosure
Side door for easy label loading

Rice Lake POLY GUARD Specifications

Dimensions:
Part #88531: (W x T x L):13 in x 12 ¾ in x 23 ½ in
Add ½ in sides for latches and ½ in side door
Part #88532: 14 in x 14 ¾ in x 24 1/2 in
Add ½ in sides for latches and ½ in side door

Weight:
24 lbs

Enclosure:
¼ in Polycarbonate
Base-natural polyethylene (butcher’s block)

Warranty:
90-day limited warranty

RICE LAKE Guardian™ Printer Enclosure

Designed to protect the Honeywell, I-4208, I-4308 and I-4212 printers from harsh washdown environments
Single lift-and-turn latch for easy access
Adjustable anti-skid feet for easy leveling alignment and cleaning under unit
Sliding label-access door
Heavy-gauge 304 stainless steel construction for durability

Rice Lake GUARDIAN Specifications

Enclosure:
304 stainless steel; piano-style hinge

Dimensions:
Part #66762: (H x W x D): 14.25 x 14.25 x 21.25 in
(361.2 x 361.2 x 539.7 mm)

Weight:
Approximately 38 lb (17.2 kg)

Warranty:
One-year limited warranty

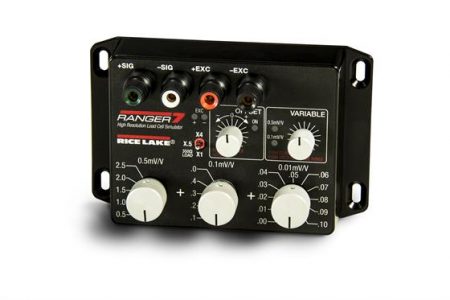

RICE LAKE Ranger 7 Variable Range Simulator

Designed for high resolution,
Used in high precision testing, troubleshooting and calibrating digital weight indicators
Switchable offset
Painted die-cast enclosure

Information

The Ranger 7 is the simulator of choice for precision testing. Designed for applications that require high resolutions, it features a switchable offset and two Vernier controls, along with switches that go down to 0.01 mV/V.

Ranger 7 Variable Range Simulator Specifications

Vernier:
Two ranges; one is equal to the sum of the 0.05 mV/V switch and the 0 mV/V-0.5 mV/V switch. The other is the sum of the 0.5 mV/V, 0.1 mV/V and 0.01 mV/V switches.

Load Impedance:
Three settings: X0.5= 700 ohms, X1= 350 ohms (one standard load cell),
X4= 87.5 ohms (four load cell platform)

Linearity:
± 0.01% + 1µV

Connectors:
Low Thermal Electronics, Type 2758 precision gold plated binding posts Standard banana jacks or
14 AWG wire

Temperature Coefficient:
5 ppm/°C

Zero Offset:
± 0.0005 mV/V

Output Range:
0 mV/V-3 mV/V in 0.01 mV/V steps

LED Annunciators:
EXC +
EXC –
Offset ON
0.5 mV/V
0.1 mV/V

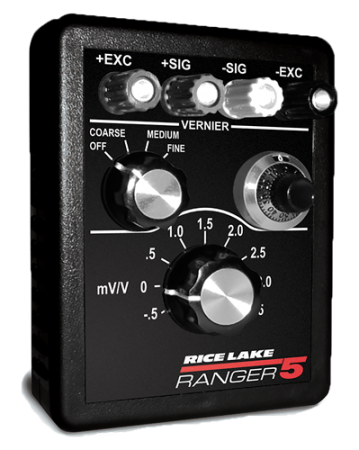

RICE LAKE Ranger 5 Variable Range Simulator

ABS plastic case, weighs less than 1 lb
Fixed rotary switch, -0.5 mV/V to 4.5 mV/V in nine steps of 0.5 mV/V per step
10-turn vernier knob with locking graduated dial
Vernier selection of four ranges: Off, Fine, Medium and Coarse
Ideal tool for calibrating indicator A/D offset and gain setting
A/D calibration steps for -0.5 mV/V for offset and 4.5 mV/V for gain
Used in testing, troubleshooting and calibrating digital weight indicators
Binding posts are color coded to ISA S37.8 standard

Information

The Ranger 5 variable range simulator is a full-functioning simulator, well suited for more advanced troubleshooting and calibration needs.

Ranger 5 Variable Range Simulator Specifications

Fixed Steps:
-0.5 mV/V–4.5 mV/V range

Vernier:
Variable range: up to 0.5 mV/V, up to 1 mV/V, up to 1.5 mV/V

Impedance:
350 ohm nominal

Nonlinearity:
Less than 0.02%

Connectors:
Binding posts suitable for banana plug or 14 gauge wire

Temperature Coefficient:
± 5 ppm/°C

Dimensions:
(L x W x H) 4.5 in x 3.5 in x 1.25 in (114.3 mm x 88.9 mm x 31.8 mm)

Warranty:
One-year limited warranty

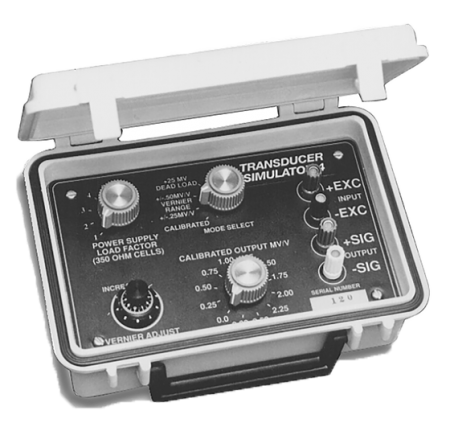

RICE LAKE Transducer Simulator 4

Designed for high accuracy
Sealed lid with neoprene O-ring
Dustproof and crush tested to 500 lb
Four operational modes include: vernier adjustment, calibrated adjustment, 0.25 mV/V offset and 0.50 mV/V offset
Ideal for setpoint or batching simulation

Information

The Transducer Simulator 4 is a fully functional simulator for replicating a wide range of load cell scenarios. An all-in-one carrying case provides the portability and convenience required by field technicians.

Transducer Simulator 4 Specifications

Range:
Choose any fixed setting ± 0.25 mV or 0.50 mV through a 10-turn wire-wound potentiometer with locking clutch, fixed and variable

Maximum Voltage:
15 V

Linearity:
Less than ± 0.02% full scale

Temperature Coefficient:
Absolute 5 ppm/°C; Tracking less than 0.5 ppm/°C

Load Factors:
Simulates one, two, three, four or eight 350-ohm load cells; or two, four, six, eight or 16 700-ohm load cells

Offset:
+0.25mV/V for use with digitally calibrated meters requiring positive dead load for calibration

Connectors:
Six-way binding posts, suitable for loose wires or banana jacks

Warranty:
One-year limited warranty

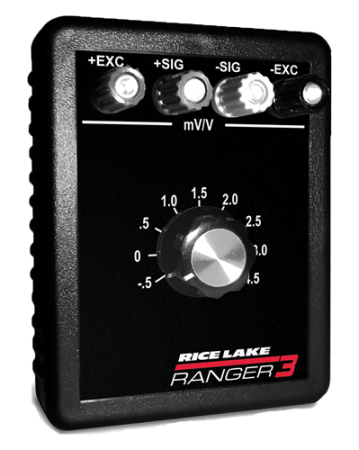

RICE LAKE Ranger 3 Variable Range Simulator

ABS plastic case, weighs less than 1 lb
Fixed rotary switch, -0.5 mV/V to 4.5 mV/V in nine steps of 0.5mV/V per step
Ideal tool for calibrating the indicator A-D offset and gain setting
A-D calibration steps for -0.5 mV/V for offset and 4.5 mV/V for gain
Used in testing, troubleshooting and calibrating digital weight indicators
Binding posts are color coded to ISA S37.8 standard

Information

The Ranger 3 variable range simulator is well suited for calibration needs, offering nine fixed intervals from -5 mV/V to +4.5 mV/V.

Ranger 3 Variable Range Simulator Specifications

Range:
-0.5 mV/V-4.5 mV/V range

Impedance:
350 ohm nominal

Nonlinearity:
Less than 0.02%

Connectors:
Binding posts suitable for banana plug or
14-gauge wire

Temperature Coefficient:
±5 ppm/ °C

Dimensions:
(W x L x H) 4.5 in x 3.5 in x 1.25 in (114.3 mm x 88.9 mm x 31.8 mm)

Warranty:
One-year limited warranty

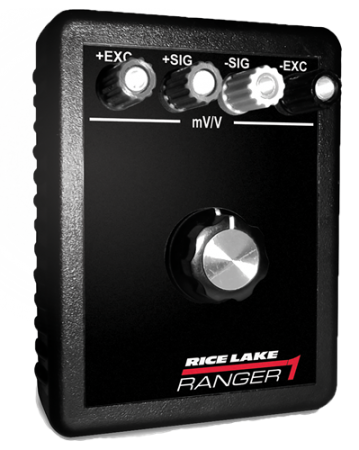

RICE LAKE Ranger 1 Variable Range Simulator

ABS plastic case, weighs less than 1 lb
Large vernier knob, smooth 10-turn potentiometer
Ideal tool for troubleshooting a scale system, bench testing stability of indicators and setpoint simulation
Binding posts are color coded to ISA S37.8 standard

Information

Rice Lake’s most economically priced simulator meets the needs of basic indicator troubleshooting and testing. The Ranger 1 gives a variable range output of 0 mV/V-3 mV/V.

Ranger 1 Variable Range Simulator Specifications

Variable Range:
0-3 mV/V

Impedance:
700 ohm nominal

Connectors:
Binding posts suitable for banana plug or
14 gauge wire

Temperature Coefficient:
±100 ppm/ °C

Dimensions:
(W x L x H) 4.5 in x 3.5 in x 1.25 in (114.3 mm x 88.9 mm x 31.8 mm)

Warranty:
One-year limited warranty

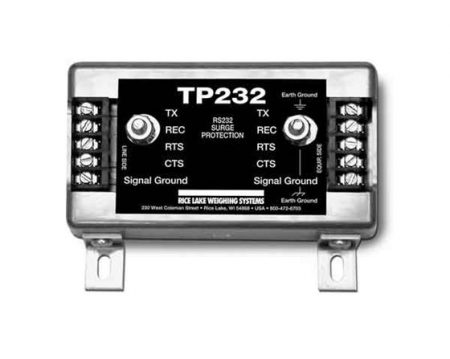

RICE LAKE TP232 RS-232 Serial Surge Protector

Two metal mounting brackets
Three stages of protection: Gas discharge tube, series resistor and transient voltage suppressor (TVS)
Two terminal posts for ground
RS-232 high energy surge protector
Terminal blocks for transmit, receive, request to send, clear to send and signal ground
Safe for use with computers and PLCs

Applications

Indicators
Remote displays
Printers
Computers
PLC

Information

The TP232 RS-232 high energy surge protector is safe to use with computers and PLCs. This device offers three stages of protection using different technologies for optimal surge protection.

TP232 RS-232 Info Product Specifications

Clamping Voltage (Stage One):
72 V DC minimum, 108 V DC maximum

Series Resistance (Stage Two):
2.7 ohm

Clamping Voltage (Stage Three):
14.3 V minimum, 15.7 V maximum

Clamping Time:
Less than 5 x 10-9 seconds

Connectors:
Five-position terminal blocks

Dimensions:
Approximately 4.5 L x 3.3 W x 1.8 in H (114.3 L x 83.8 W x 45.7 mm H)

Weight:
Approximately 0.42 lb (0.19 kg)

Approvals:
CE marked

Warranty:
One-year limited warranty

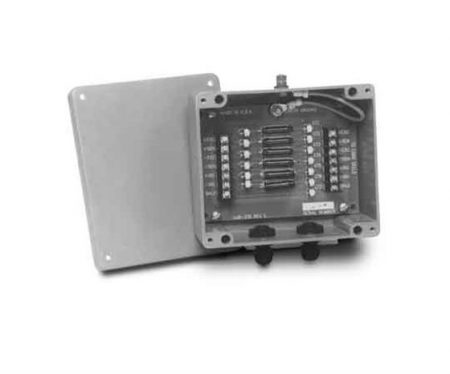

RICE LAKE UJB3T6 DC Transient Protector

Factory serviceable
Full six-wire with shield protection
#6 SEMS screw type; accepts spade lugs, tinned leads or bare wires up to #12 AWG
Up to eight parallel or summed load cells
50K baud maximum transmission frequency
Up to six serial data lines can be protected instead of load cells

Applications

Protects load cells from voltage transients
Compatible with signals down to 1 uV grad
Installations exposed to significant transients
Protects serial communication lines

Information

The factory-serviceable UJB3T6 DC Transient Protector can protect up to six data lines or eight load cells. The fiberglass reinforced polyester enclosure can withstand up to 40 psi in washdown applications.

UJB3T6 DC Specifications

Protection Type:
Six-channel type with separate shield

Maximum Excitation Voltage:
20 VDC or 20 VAC

Clamping Voltage:
75 VDC or 75 VAC

Clamping Time:
75 VDC Stages <100 nanoseconds typical

Peak Surge Currents:
75 VDC Stage-5000 amperes

Maximum Serial Transmission Rate:
50K baud

Series resistance:
0.219 ohm typical

Series inductance:
110 µh typical

Grounding:
20 ft (6.1 m) insulated # 10 AWG wire

Cable Fitting:
(2) nylon strain relief for 0.079-0.236 in (2.0-6.0 mm) diameter cable

Enclosure:
Fiberglass-Reinforced Polyester (FRP) NEMA Type 4X, maximum 40 psi washdown

Operating Temperature:
14°F to 104°F (-10°C to 40°C)

Circuit Board:
6.75 x 4.75 in (171.5 x 120.7 mm) with anti-fungal coating

Dimensions:
7.63 W x 6.63 H x 3.25 in D (193.8 W x 168.3 H x 82.6 mm D)

Warranty:
One-year limited warranty

UJB3T6 DC Transient Protector Dimensions

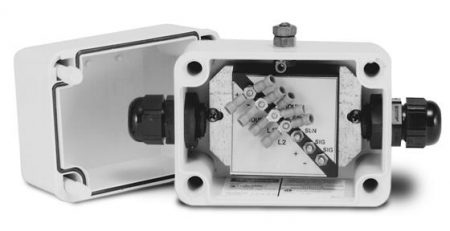

RICE LAKE TP75 DC Transient Protector

Avalanche diode design
Full six-wire with shield protection
NEMA Type 4X enclosure
Unlimited number of parallel load cells; up to eight in series
Terminal lugs provided

Applications

Protects load cells and indicators from voltage transients
Tank, bin and hopper
Truck and railroad scales
Suitable for outdoor use

Information

The TP75 DC load cell surge protector protects an unlimited number of parallel load cells and up to eight in a series. The NEMA Type 4X enclosure assures the sensitive board stays safe and dry during washdown.

TP75 DC Transient Protection Specifications

Protection Type:
Six-channel type with separate shield

Maximum Excitation Voltage:
22.8 VDC

Response Time:
Five nanoseconds

Peak Surge Currents:
100 amps

Series Resistance:
0.0 ohm

Series Inductance:
0.0 µh

Grounding:
10 AWG wire or larger (not provided)

Cable Fitting:
(2) nylon strain relief for 0.187in-0.312in (4.7mm-7.9mm) diameter cable

Enclosure:
Impact-resistant polycarbonate NEMA Type 4X, maximum 40 psi washdown

Operating Temperature:
4°F to 121°F (-20°C to 85°C)

Circuit Board Dimensions:
2.22 x 2.22 in (56.4 x 56.4 mm)

Dimensions:
(W x H x D) 4.38 x 3.15 X 3.38 (111.1 x 80 x 85.9 mm)

Warranty:
One-year limited warranty

TP75 DC Transient Protection Dimensions

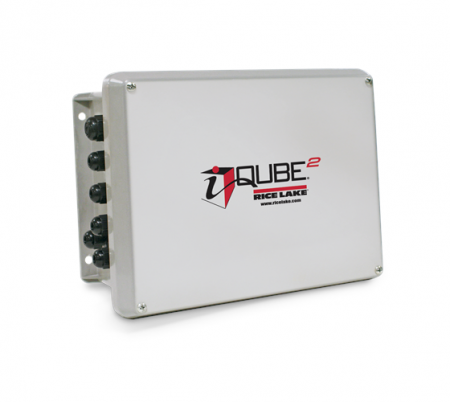

RICE LAKE iQUBE²® Digital Diagnostic Junction Box

Applications

Truck and railroad scales
Tank and hopper scales
Multi-channel scales
Interfaces to 920i®, 1280, VIRTUi2® and ASCII serial commands

Information

iQUBE²® is leading a new generation of digital junction boxes. At the forefront of iQUBE²’s cutting edge design are enhanced features that will redefine expectations for traditional analog to digital technology.

For mission-critical applications and unmatched performance, iQUBE² is the equipment of choice. Its high-speed ability to update up to 500 times per second on multi-channels makes it the fastest smart junction box available. Unmatched reaction time brings accuracy to new levels, increasing precision and profits.

Enhanced onboard diagnostics will identify noise, test for linearity and zero reference, and monitor drift. Diagnostics are enhanced by a unique load cell emulation feature which compensates for a failing load cell until a repair can be made.

iQUBE² Digital Diagnostic Junction Box Dimensions

Dimensions
Stainless Steel 8 x 10 in
A	8.91 in (226.3 mm)	E	11.50 in (292.1 mm)
B	10.13 in (257.3 mm)	F	10.75 in (268.5 mm)
C	12.57 in (319.3 mm)	G	6.00 in (152.4 mm)
D	4.29 in (109 mm)	H	0.312 in (7.9 mm)
FRP Large 10 x 12 in
A	11.30 in (287 mm)	E	13.53 in (343.7 mm)
B	13.33 in (338.6 mm)	F	12.76 in (324.1 mm)
C	14.00 in (355.6 mm)	G	8.00 in (203.2 mm)
D	5.57 in (141.5 mm)	H	0.312 in (7.9 mm)
FRP Small 8 in x 10 in
A	9.31 in (236.5 mm)	E	11.51 in (287.2 mm)
B	11.31 in (287.2 mm)	F	10.75 in (273.1 mm)
C	12.85 in (326.4 mm)	G	6.00 in (152.4 mm)
D	5.42 in (137.7 mm)	H	0.312 in (7.9 mm)

iQUBE² Digital Diagnostic Junction Box Specifications

Enclosure:
Stainless steel or Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure

Voltage Input:
115/230 V AC power supply DC/DC converter for 9-36V
6-12 V DC to CPU

Load Cell Inputs:
Four channels per board up to four networked boards

A/D Sampling Rate:
2.5-500 Hz (selectable)

Temperature Range:
14°F to 104°F (-10°C to 40°C)

Analog signal sensitivity:
0.3 uV/grad at 30 Hz
0.5 uV/grad at 100 Hz
1.2 uV/grad at 500 Hz

Load Cell Excitation:
5 V DC, 57 mA maximum per channel

Analog range:
-4.5 mV/V to 4.5 mV/V

Approvals:
NTEP 03-032A1
Measurement Canada – AM-5561, Rev. 1
UL E151461
CE

Warranty:
Two-year limited warranty

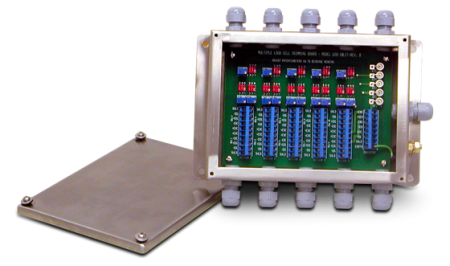

RICE LAKE JB1010ST Signal Trim Junction Box

Stainless steel, NEMA Type 4X enclosure
Transient protection using gas discharge tubes
Section and individual cell trim capability
Compact enclosure only 1.75 in deep
Strain relief cable fitting
Number of cells: Two, four, six, eight or 10 single load cells
Any unused channels require modification

Applications

Tank, truck and railroad scales
Summing 10 load cells with individual and section trimming capability

Information

Specifically for signal trimming, the compact JB1010ST signal trim junction box with transient protection provides individual cell and section trim capability. The JB1010ST junction box totals up to ten single load cells and includes transient protection inside the element-resistant NEMA Type 4X stainless steel enclosure.

JB1010ST Signal Trim Junction Box with Transient Protection Dimensions

JB1010ST Signal Trim Junction Box with Transient Protection Specifications

Cable Fittings:
11 nylon cable strain relief for cable dimension
range: 0.079 to 0.314

Connectors:
Electrovert 0.197 miniature screw terminals,
Five positions
Maximum wire size: # 14 AWG
External enclosure ground stud

Trimming:
Individual cell and section signal trim

Potentiometers:
100,000 ohm, 25 turns cerment, individual trim
100 ohm potentiometers for section trimming

Enclosure:
Stainless steel

Circuit Board:
6.5 in x 4.5in (165.1 mm x 114.3mm)

Warranty:
One-year limited warranty

Replacement Junction Boxes, Boards or Components Table

Model	Complete J-Box Replacement	Replacement Board Only	Replacement Cord Grips	Replacement Pressure & Condensation Vent	Desiccant Packs
JB4SS	88956	88958	58983 59001	88733 PreVent™ breather (vent) 88734 (vent nut)	92240
JB4ES	91779	89446	58983 59001	88733 PreVentbreather (vent) 88734 (vent nut) $1.05	92240
JB4SP JB4SPT	91780 92762	88958 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB4EP JB4EPT	91781 92763	89446 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL204	73428	88958	N/A	N/A	N/A
JB8SP	91782	**89889	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB8SPT	91783	89889 (load cell) and 89894 (transient protection)	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL304A	21169	21301	N/A	N/A	N/A
JB1010	36231	36351	N/A	N/A	N/A
JB1010ST	68813	68811	N/A	N/A	N/A
EL210	91781, JB4EP*	92472	58983 59001	N/A	N/A
EL211A	91780, JB4SP (However the board does not have section trim capabilities)*	92473 (However the board does not have section trim capabilities)	58983 59001	N/A	N/A
EL604-AL	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604STA	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604ETA	91779, JB4ES*	89446	58983 59001	N/A	N/A
EL504	21165	21296	N/A	N/A	N/A
JB808S	91782, JB8SP*	92471	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A
JB818ST	91783, JB8SPT*	Need (1) 77445 (1) 89889 and (1) 89894	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A

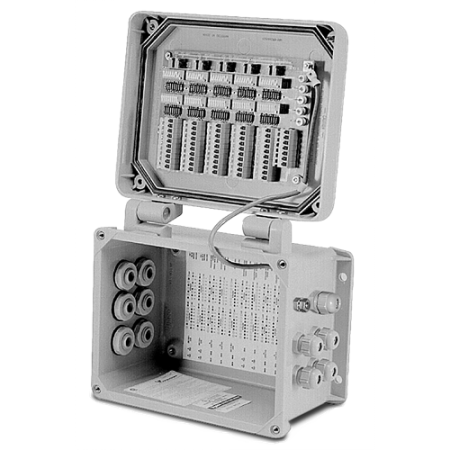

RICE LAKE JB1010T Signal/Excitation Trim

Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure
Transient protection
Signal or excitation trim
Front panel mounting
Strain relief cable fittings
Number of cells: 1 through 10
Trims odd numbers of cells without modification

Applications

Tank, truck, railroad, hopper and floor scales
Universal field replacement of existing boxes
Expansion of existing scales

Information

When trimming junction boxes for paralleling load cells, the JB1010 provides signal or excitation trim capabilities. Whether expanding an existing scale or replacing a junction box on a truck or floor scale, the JB1010 provides easy access for trimming up to ten load cells per unit or conveniently adjust multiple cell modules by section.

JB1010 Signal/Excitation Trim Junction Box with Transient Protection Dimensions

JB1010 Signal/Excitation Trim Junction Box with Transient Protection Specifications

Mounting Centers:
3.75 in x 2.31 in (95.2 mm x 58.7 mm)

Cable Fittings:
Nylon waterproof strain-relief type

Cable Diameter:
0.079-0.314 in (2.0-8.0 mm)

Potentiometers:
100,000 ohm, 25 turns cerment

Trimming:
Individual cell and section signal and excitation trimming

Terminal Block:
Rated 300V/15A; 7-position screw terminal can each accommodate up to #16 AWG

Warranty:
One-year limited warranty

Replacement Junction Boxes, Boards or Components Table

Model	Complete J-Box Replacement	Replacement Board Only	Replacement Cord Grips	Replacement Pressure & Condensation Vent	Desiccant Packs
JB4SS	88956	88958	58983 59001	88733 PreVent™ breather (vent) 88734 (vent nut)	92240
JB4ES	91779	89446	58983 59001	88733 PreVentbreather (vent) 88734 (vent nut) $1.05	92240
JB4SP JB4SPT	91780 92762	88958 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB4EP JB4EPT	91781 92763	89446 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL204	73428	88958	N/A	N/A	N/A
JB8SP	91782	**89889	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB8SPT	91783	89889 (load cell) and 89894 (transient protection)	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL304A	21169	21301	N/A	N/A	N/A
JB1010	36231	36351	N/A	N/A	N/A
JB1010ST	68813	68811	N/A	N/A	N/A
EL210	91781, JB4EP*	92472	58983 59001	N/A	N/A
EL211A	91780, JB4SP (However the board does not have section trim capabilities)*	92473 (However the board does not have section trim capabilities)	58983 59001	N/A	N/A
EL604-AL	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604STA	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604ETA	91779, JB4ES*	89446	58983 59001	N/A	N/A
EL504	21165	21296	N/A	N/A	N/A
JB808S	91782, JB8SP*	92471	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A
JB818ST	91783, JB8SPT*	Need (1) 77445 (1) 89889 and (1) 89894	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A

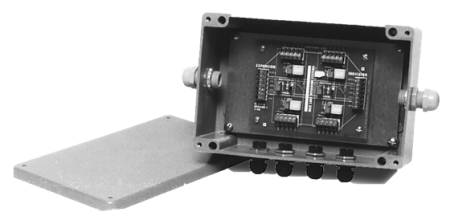

RICE LAKE EL304A Signal Trim Junction Box

Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure
Strain relief cable fittings
Individual cell signal disconnect switches
Number of cells: Two or four single cells (even number of cells only)
Expansion port

Applications

Livestock scales
Tank and vessel weighing
Corner and/or section trim applications

Information

The EL304A signal trim junction box has a NEMA Type 4X, Fiberglass Reinforced Polyester (FRP) enclosure which provides optimal protection to the internal sensitive signal board. Individual cell signal disconnect switches help in diagnosing troubled load cell signals. The EL304 signal trim junction box has capacity for two or four load cells with expansion potential.

EL304A Signal Trim Junction Box Dimensions

EL304A Signal Trim Junction Box Specifications

Cable Fittings:
4 nylon cable strain reliefs 0.079-0.236 in (2.0-6.0 mm)
2 nylon cable strain reliefs 0.236-0.354 in (6.0-9.0 mm)

Connectors:
Electrovert 0.197 in (5.0 mm) miniature screw terminals. Maximum wire size
# 14 AWG

Trimming:
Individual cell and section, signal trim

Potentiometers:
100,000 ohm, 25-turn cermet

Enclosure:
FRP NEMA Type 4X, 40 PSI washdown

Circuit Board:
5.5 in x 4 in (139.7 mm x 101.6 mm) with anti-fungal coating

Warranty:
One-year limited warranty

Replacement Junction Boxes, Boards or Components Table

Model	Complete J-Box Replacement	Replacement Board Only	Replacement Cord Grips	Replacement Pressure & Condensation Vent	Desiccant Packs
JB4SS	88956	88958	58983 59001	88733 PreVent™ breather (vent) 88734 (vent nut)	92240
JB4ES	91779	89446	58983 59001	88733 PreVentbreather (vent) 88734 (vent nut) $1.05	92240
JB4SP JB4SPT	91780 92762	88958 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB4EP JB4EPT	91781 92763	89446 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL204	73428	88958	N/A	N/A	N/A
JB8SP	91782	**89889	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB8SPT	91783	89889 (load cell) and 89894 (transient protection)	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL304A	21169	21301	N/A	N/A	N/A
JB1010	36231	36351	N/A	N/A	N/A
JB1010ST	68813	68811	N/A	N/A	N/A
EL210	91781, JB4EP*	92472	58983 59001	N/A	N/A
EL211A	91780, JB4SP (However the board does not have section trim capabilities)*	92473 (However the board does not have section trim capabilities)	58983 59001	N/A	N/A
EL604-AL	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604STA	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604ETA	91779, JB4ES*	89446	58983 59001	N/A	N/A
EL504	21165	21296	N/A	N/A	N/A
JB808S	91782, JB8SP*	92471	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A
JB818ST	91783, JB8SPT*	Need (1) 77445 (1) 89889 and (1) 89894	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A

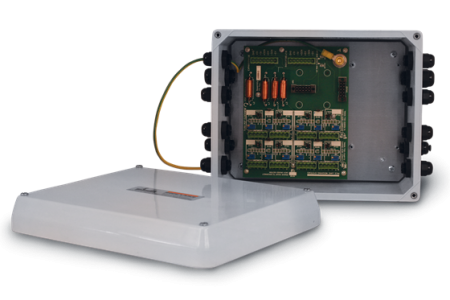

RICE LAKE JB8SP TuffSeal™ Signal Trim Junction Box

Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure
PreVent™ breather vent
Conformal coated circuit board
Removable load cell connectors
Section and individual cell trim capability
Number of cells: Two, four, six or eight single load cells (even number of cells only)
Expansion port

Applications

Truck, livestock and railroad scales

Information

Ideal for use with truck, livestock and railroad scales, the JB8SP TuffSeal™ signal trim junction box effectively seals in sensitive circuitry and resists potentially damaging elements. Conjoining up to eight load cells in one unit, the JB8SP TuffSeal junction box also includes an expansion port if needed. For convenience, this junction box has both section and individual cell signal trim capability.

JB8SP TuffSeal Signal Trim Junction Box Dimensions

JB8SP TuffSeal Signal Trim Junction Box Specifications

Cable Fittings:
(9) 3/8 in NPT 0.157 in-0.314 in
(2) 1/2 in NPT 0.272 in-0.472 in
(1) PreVent breather unit

Enclosure:
Molded FRP (NEMA Type 4X) enclosure with overlapping solid cover, stainless steel screws

Connectors:
Pluggable screw type, 12-28 AWGTrimming:
Individual cell trim, range

Potentiometers:
100,000 ohm, 25 turn cermet

Circuit Board:
5.7 in x 7.2 in with conformal coatingWarranty:
One-year warranty

Replacement Junction Boxes, Boards or Components Table

Model	Complete J-Box Replacement	Replacement Board Only	Replacement Cord Grips	Replacement Pressure & Condensation Vent	Desiccant Packs
JB4SS	88956	88958	58983 59001	88733 PreVent™ breather (vent) 88734 (vent nut)	92240
JB4ES	91779	89446	58983 59001	88733 PreVentbreather (vent) 88734 (vent nut) $1.05	92240
JB4SP JB4SPT	91780 92762	88958 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB4EP JB4EPT	91781 92763	89446 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL204	73428	88958	N/A	N/A	N/A
JB8SP	91782	**89889	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB8SPT	91783	89889 (load cell) and 89894 (transient protection)	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL304A	21169	21301	N/A	N/A	N/A
JB1010	36231	36351	N/A	N/A	N/A
JB1010ST	68813	68811	N/A	N/A	N/A
EL210	91781, JB4EP*	92472	58983 59001	N/A	N/A
EL211A	91780, JB4SP (However the board does not have section trim capabilities)*	92473 (However the board does not have section trim capabilities)	58983 59001	N/A	N/A
EL604-AL	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604STA	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604ETA	91779, JB4ES*	89446	58983 59001	N/A	N/A
EL504	21165	21296	N/A	N/A	N/A
JB808S	91782, JB8SP*	92471	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A
JB818ST	91783, JB8SPT*	Need (1) 77445 (1) 89889 and (1) 89894	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A

RICE LAKE EL504 Signal Trim Junction Box

Stainless steel, NEMA Type 4X enclosure
Strain relief cable fittings
Removable connectors for easy wiring
Number of cells: Two or four single cells (even number of cells only)
Any unused channels require modification

Applications

Truck and floor scales
Limited space installations

Information

For signal trimming of two or four load cells outputs individually, the EL504 signal trim junction box is perfect for truck scales, floor scales and limited space installations. A stainless steel NEMA Type 4X enclosure ensures protection of sensitive circuitry from most destructive elements.

EL504 Signal Trim Junction Box Dimensions

EL504 Signal Trim Junction Box Specifications

Cable Fittings:
(5) nylon 0.187 in-0.312 in (4.7 mm-7.9 mm) cable strain reliefs

Connectors:
Electrovert 0.197 in (5.0 mm) miniature two piece connectors. Maximum wire size # 14 AWG, connectors are removable for easy wiring.

Trimming:
Individual cell trim, signal trim

Potentiometers:
100,000 ohm, 25-turn cermet

Enclosure:
Stainless steel NEMA Type 4X, 40 PSI washdown

Circuit Board:
6.5 in x 1.5 in (165 mm.1 x 38.1 mm) with anti-fungal coating

Replacement Junction Boxes, Boards or Components Table

Model	Complete J-Box Replacement	Replacement Board Only	Replacement Cord Grips	Replacement Pressure & Condensation Vent	Desiccant Packs
JB4SS	88956	88958	58983 59001	88733 PreVent™ breather (vent) 88734 (vent nut)	92240
JB4ES	91779	89446	58983 59001	88733 PreVentbreather (vent) 88734 (vent nut) $1.05	92240
JB4SP JB4SPT	91780 92762	88958 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB4EP JB4EPT	91781 92763	89446 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL204	73428	88958	N/A	N/A	N/A
JB8SP	91782	**89889	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB8SPT	91783	89889 (load cell) and 89894 (transient protection)	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL304A	21169	21301	N/A	N/A	N/A
JB1010	36231	36351	N/A	N/A	N/A
JB1010ST	68813	68811	N/A	N/A	N/A
EL210	91781, JB4EP*	92472	58983 59001	N/A	N/A
EL211A	91780, JB4SP (However the board does not have section trim capabilities)*	92473 (However the board does not have section trim capabilities)	58983 59001	N/A	N/A
EL604-AL	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604STA	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604ETA	91779, JB4ES*	89446	58983 59001	N/A	N/A
EL504	21165	21296	N/A	N/A	N/A
JB808S	91782, JB8SP*	92471	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A
JB818ST	91783, JB8SPT*	Need (1) 77445 (1) 89889 and (1) 89894	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A

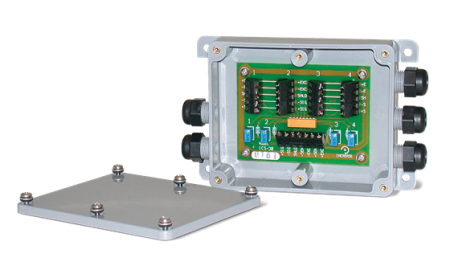

RICE LAKE EL204 Signal Trim Junction Box

ABS enclosure with molded-in cable fittings
Premium screw terminals
Six-screw attachment to lid, die cut gasket for superior environment protection
Number of cells: Two, three or four single cells

Applications

Floor, hopper, tank or livestock applications

Information

The EL204 signal trim junction box is a fit choice for summing two to four single cells in floor, hopper, tank or livestock applications. The ABS enclosure with molded-in cable fittings, sealed six-screw lid attachment and die-cut gasket provides superior environmental protection.

EL204 Signal Trim Junction Box Dimensions

EL204 Signal Trim Junction Box Specifications

Cable Fittings:
Five water tight nylon compression fittings, 0.210 in x 0.280 in (5.3 mm x 7.1 mm)

Connectors:
Spring clamp screwless, 12-28 AWG

Trimming:
Individual cell trim, signal trim

Potentiometers:
100,000 ohm, 25 turn cermet

Enclosure:
ABS with molded through-fittings, sealed six-screw lid

Circuit Board:
3.8 in x 2.3 in (96.5 mm x 58.4 mm); with conformal coating

Warranty:
One-year limited warranty

Replacement Junction Boxes, Boards or Components Table

Model	Complete J-Box Replacement	Replacement Board Only	Replacement Cord Grips	Replacement Pressure & Condensation Vent	Desiccant Packs
JB4SS	88956	88958	58983 59001	88733 PreVent™ breather (vent) 88734 (vent nut)	92240
JB4ES	91779	89446	58983 59001	88733 PreVentbreather (vent) 88734 (vent nut) $1.05	92240
JB4SP JB4SPT	91780 92762	88958 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB4EP JB4EPT	91781 92763	89446 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL204	73428	88958	N/A	N/A	N/A
JB8SP	91782	**89889	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB8SPT	91783	89889 (load cell) and 89894 (transient protection)	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL304A	21169	21301	N/A	N/A	N/A
JB1010	36231	36351	N/A	N/A	N/A
JB1010ST	68813	68811	N/A	N/A	N/A
EL210	91781, JB4EP*	92472	58983 59001	N/A	N/A
EL211A	91780, JB4SP (However the board does not have section trim capabilities)*	92473 (However the board does not have section trim capabilities)	58983 59001	N/A	N/A
EL604-AL	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604STA	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604ETA	91779, JB4ES*	89446	58983 59001	N/A	N/A
EL504	21165	21296	N/A	N/A	N/A
JB808S	91782, JB8SP*	92471	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A
JB818ST	91783, JB8SPT*	Need (1) 77445 (1) 89889 and (1) 89894	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A

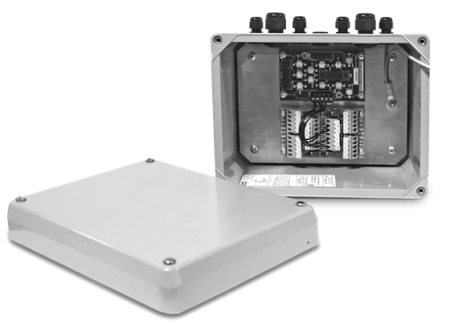

RICE LAKE JB4EP and RICE LAKE JB4EPT TuffSeal™ Excitation Trim Junction Box

Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure with stainless steel cover screws
Jumpers to enable/disable a load cell
PreVent™ breather vent
Conformal coated circuit board
Number of cells: Two, three or four single cells
Expansion port

Applications

Tank and hopper scales

Information

The JB4EP TuffSeal™ excitation trim junction box sums two or four single load cell outputs with the potential to expand through the included expansion port. The Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure is optimal protection against harsh environments. Optimal JB4EP TuffSeal applications include tank and hopper scale configurations.

JB4EP & JB4EPT TuffSeal Excitation Trim Junction Box Dimensions

JB4EP and JB4EPT TuffSeal Excitation Trim Junction Box Specifications

Cable Fittings:
(4) PG7 0.118-0.255 strain relief
(2) PG11 0.197-0.394 strain relief
(1) PreVent™ breather vent

Enclosure:
Molded FRP (NEMA Type 4X) enclosure with overlapping solid cover, stainless steel screws

Connectors:
Spring clamp screwless, 12-28 AWG

Trimming:
Individual cell, excitation trim

Potentiometers:
100 ohm, 25 turn cermet

Circuit Board:
3.8 in x 2.3 in (96.5 mm x 58.4 mm),
with conformal coating

Warranty:
One-year limited warranty

Replacement Junction Boxes, Boards or Components Table

Model	Complete J-Box Replacement	Replacement Board Only	Replacement Cord Grips	Replacement Pressure & Condensation Vent	Desiccant Packs
JB4SS	88956	88958	58983 59001	88733 PreVent™ breather (vent) 88734 (vent nut)	92240
JB4ES	91779	89446	58983 59001	88733 PreVentbreather (vent) 88734 (vent nut) $1.05	92240
JB4SP JB4SPT	91780 92762	88958 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB4EP JB4EPT	91781 92763	89446 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL204	73428	88958	N/A	N/A	N/A
JB8SP	91782	**89889	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB8SPT	91783	89889 (load cell) and 89894 (transient protection)	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL304A	21169	21301	N/A	N/A	N/A
JB1010	36231	36351	N/A	N/A	N/A
JB1010ST	68813	68811	N/A	N/A	N/A
EL210	91781, JB4EP*	92472	58983 59001	N/A	N/A
EL211A	91780, JB4SP (However the board does not have section trim capabilities)*	92473 (However the board does not have section trim capabilities)	58983 59001	N/A	N/A
EL604-AL	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604STA	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604ETA	91779, JB4ES*	89446	58983 59001	N/A	N/A
EL504	21165	21296	N/A	N/A	N/A
JB808S	91782, JB8SP*	92471	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A
JB818ST	91783, JB8SPT*	Need (1) 77445 (1) 89889 and (1) 89894	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A

RICE LAKE JB4SP and RICE LAKE JB4SPT TuffSeal™ Signal Trim Junction Box

Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure with stainless steel cover screws
Jumpers to enable/disable a load cell
PreVent™ breather vent
Conformal coated circuit board
Number of cells: Two, three or four single cells
Expansion port

Applications

Tank and hopper scales

Information

Ideal for use as a sub-junction box in a multiple modular system, the JB4SP TuffSeal™ signal trim junction box sums two or four single load cell outputs with the potential to expand through the included expansion port. The Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure is optimal protection against harsh environments. The JB4SP TuffSeal signal trim junction box is ideal for use in tank and hopper scale applications.

JB4SP and JB4SPT Tuffseal Signal Trim Junction Box Dimensions

JB4SP and JB4SPT TuffSeal Signal Trim Junction Box Specifications

Cable Fittings:
(4) PG7 0.118-0.255 strain relief
(2) PG11 0.197-0.394 strain relief
(1) PreVent™ breather vent

Enclosure:
Molded FRP (NEMA Type 4X) enclosure with overlapping solid cover, stainless steel screws

Connectors:
Spring clamp screwless, 12-28 AWG

Trimming:
Individual cell, signal trim

Potentiometers:
100,000 ohm, 25 turn cermet

Circuit Board:
3.8 in x 2.3 in (96.5 mm x 58.4 mm), with conformal coating

Warranty:
One-year limited warranty

Replacement Junction Boxes, Boards or Components Table

Model	Complete J-Box Replacement	Replacement Board Only	Replacement Cord Grips	Replacement Pressure & Condensation Vent	Desiccant Packs
JB4SS	88956	88958	58983 59001	88733 PreVent™ breather (vent) 88734 (vent nut)	92240
JB4ES	91779	89446	58983 59001	88733 PreVentbreather (vent) 88734 (vent nut) $1.05	92240
JB4SP JB4SPT	91780 92762	88958 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB4EP JB4EPT	91781 92763	89446 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL204	73428	88958	N/A	N/A	N/A
JB8SP	91782	**89889	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB8SPT	91783	89889 (load cell) and 89894 (transient protection)	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL304A	21169	21301	N/A	N/A	N/A
JB1010	36231	36351	N/A	N/A	N/A
JB1010ST	68813	68811	N/A	N/A	N/A
EL210	91781, JB4EP*	92472	58983 59001	N/A	N/A
EL211A	91780, JB4SP (However the board does not have section trim capabilities)*	92473 (However the board does not have section trim capabilities)	58983 59001	N/A	N/A
EL604-AL	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604STA	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604ETA	91779, JB4ES*	89446	58983 59001	N/A	N/A
EL504	21165	21296	N/A	N/A	N/A
JB808S	91782, JB8SP*	92471	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A
JB818ST	91783, JB8SPT*	Need (1) 77445 (1) 89889 and (1) 89894	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A

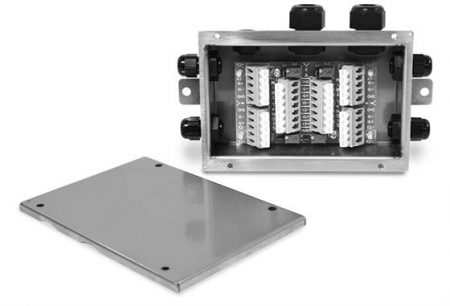

RICE LAKE JB4ES TuffSeal™ Excitation Trim Junction Box

Stainless steel, NEMA Type 4X enclosure
Jumpers to enable trimming
PreVent™ breather vent
Conformal coated circuit board
Number of cells: Two, three or four single cells
Expansion port

Applications

Floor, tank, hopper scales

Information

The JB4ES TuffSeal™ excitation trim junction box sums two or four single load cell inputs with the potential to expand and connect other junction boxes. The stainless steel NEMA Type 4X enclosure is optimal protection against harsh environments and abrasive materials. The JB4ES TuffSeal excitation trim junction box is ideal for use in tank and hopper scale applications.

RICE LAKE JB4ES Tuffseal Excitation Trim Junction Box Dimensions

Cable Fittings:
(4) PG7 0.118-0.255 strain relief
(2) PG11 0.197-0.394 strain relief
(1) PreVent™ breather vent

Enclosure:
Stainless steel NEMA Type 4X

Connectors:
Spring clamp screwless, 12-28 AWG

Trimming:
Individual cell, excitation trim

Potentiometers:
100 ohm, 25 turn cermet

Circuit Board:
3.8 in x 2.3 in (96.5 mm x 58.4 mm), with conformal coating

Warranty:
One-year limited warranty

Model	Complete J-Box Replacement	Replacement Board Only	Replacement Cord Grips	Replacement Pressure & Condensation Vent	Desiccant Packs
JB4SS	88956	88958	58983 59001	88733 PreVent™ breather (vent) 88734 (vent nut)	92240
JB4ES	91779	89446	58983 59001	88733 PreVentbreather (vent) 88734 (vent nut) $1.05	92240
JB4SP JB4SPT	91780 92762	88958 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB4EP JB4EPT	91781 92763	89446 (load cell) and 89894 (transient protection)	58983 59001	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL204	73428	88958	N/A	N/A	N/A
JB8SP	91782	**89889	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
JB8SPT	91783	89889 (load cell) and 89894 (transient protection)	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	88733 PreVent breather (vent) 88734 (vent nut)	16039
EL304A	21169	21301	N/A	N/A	N/A
JB1010	36231	36351	N/A	N/A	N/A
JB1010ST	68813	68811	N/A	N/A	N/A
EL210	91781, JB4EP*	92472	58983 59001	N/A	N/A
EL211A	91780, JB4SP (However the board does not have section trim capabilities)*	92473 (However the board does not have section trim capabilities)	58983 59001	N/A	N/A
EL604-AL	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604STA	88956, JB4SS*	88958	58983 59001	N/A	N/A
EL604ETA	91779, JB4ES*	89446	58983 59001	N/A	N/A
EL504	21165	21296	N/A	N/A	N/A
JB808S	91782, JB8SP*	92471	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A
JB818ST	91783, JB8SPT*	Need (1) 77445 (1) 89889 and (1) 89894	15655 (cord grip) and 15656 (nut)=3/8″ NPT 15628 (cord grip) and 15630 (nut)=1/2″ NPT	N/A	N/A

Search results

Okidata 320/420 Turbo*:

Okidata 390 Turbo:

Okidata 320/390/420 Turbo Specifications

Okidata 186 Turbo Specifications

Standard Features

Specifications

EPSON TM-U590 Specifications

EPSON TM-U295 Specifications

EPSON TM-U220 Specifications

EPSON TM-T88V Specifications

Honeywell H-4212 / H-4310 Specifications

Honeywell I-4212e Mark II Specifications

Honeywell M-4206 Mark II/M-4210 Mark II Specifications

Honeywell M-4206 Mark II/M-4210 Mark II Options

Honeywell E-Class III Specifications

Information

Rice Lake SURVIVOR SST3 Specifications

Rice Lake SURVIVOR SST3 Options

Rice Lake POLY GUARD Specifications

Rice Lake GUARDIAN Specifications

Information

Ranger 7 Variable Range Simulator Specifications

Information

Ranger 5 Variable Range Simulator Specifications

Information

Transducer Simulator 4 Specifications

Information

Ranger 3 Variable Range Simulator Specifications

Information

Ranger 1 Variable Range Simulator Specifications

Applications

Information

TP232 RS-232 Info Product Specifications

Applications

Information

UJB3T6 DC Specifications

UJB3T6 DC Transient Protector Dimensions

Applications

Information

TP75 DC Transient Protection Specifications

TP75 DC Transient Protection Dimensions

Applications

Information

iQUBE² Digital Diagnostic Junction Box Dimensions

iQUBE² Digital Diagnostic Junction Box Specifications

Applications

Information

JB1010ST Signal Trim Junction Box with Transient Protection Dimensions

JB1010ST Signal Trim Junction Box with Transient Protection Specifications

Replacement Junction Boxes, Boards or Components Table

Applications

Information

Applications

Information

EL304A Signal Trim Junction Box Dimensions

EL304A Signal Trim Junction Box Specifications

Replacement Junction Boxes, Boards or Components Table

Applications

Information

JB8SP TuffSeal Signal Trim Junction Box Dimensions

JB8SP TuffSeal Signal Trim Junction Box Specifications

Replacement Junction Boxes, Boards or Components Table

Applications

Information

EL504 Signal Trim Junction Box Dimensions

EL504 Signal Trim Junction Box Specifications

Replacement Junction Boxes, Boards or Components Table

Applications

Information

EL204 Signal Trim Junction Box Dimensions

EL204 Signal Trim Junction Box Specifications

Applications

Information

JB4EP & JB4EPT TuffSeal Excitation Trim Junction Box Dimensions

JB4EP and JB4EPT TuffSeal Excitation Trim Junction Box Specifications

Replacement Junction Boxes, Boards or Components Table

Applications

Information

JB4SP and JB4SPT Tuffseal Signal Trim Junction Box Dimensions

**Okidata 320/420 Turbo*:**
